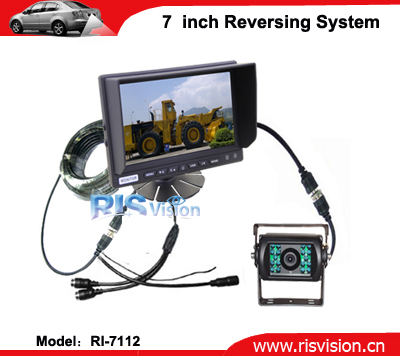

RI-7112 system
Model No.:
7 inch digital reversing system CCD camera support U shape bracket
+86-13580347156

Detailed Product Description:
Specification:

RM-711  7 inch Digital Monitor  (with shade)

    ◆ Screen Ratio:7” high digital new panel ,16:9 image
    ◆ Back Light:LED,400cd/㎡ (optional)
    ◆ Resolution:800xRGBx480
    ◆ Function: Light sensor automatic adjustment (optional)
    ◆ Compatible system: NTSC & PAL (automatically)
    ◆ OSD control: Color, Brightness, Contrast, Volume, Language
(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)

     View angel: Hor. L(70) R(70)   Ver. UP(50) DOWN(70)
    ◆ Image reversion: UP/Down and Left/Right
    ◆ Power requirement: 12-32V DC
    ◆ Power consumption: 5W
    ◆ Storage temperature: -30〜80℃
    ◆ Working temperature: -20℃ to 70℃
    ◆ Impact rating: 4G
    ◆ Size: 180*121*26(76)MM
    ◆ Exterior color: Black rubber oiling,Detachable sunshade,U type bracket
    ◆ AV Inputs: 2 way video input, 2 way audio input
    ◆ Number of Trigger & display: 1 ways Trig function (2 ways trigger function optional )
    ◆ Connector: RCA/ 4pin connector (Optional)
    ◆ Accessories: Remote controller, Power supply cable , User manual, Bracket



RC-502 Sharp CCD Camera

 Image Pick-up Device :  Sharp CCD  ( Sony Optional )

 Number of Pixels : NTSC : 510(H) x492(V); PAL : 500(H)x582(V)

 Horizontal Resolution: 420 TV Lines

 IR LEDS : 18 blue LED

 Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

Waterproof Resistance : IP 69
 IR project distance : 15 meters

 Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

 Sync System: Internal Synchronization

 Lens :2.8mm standard , 2.1mm~3.6mm (optional)
 Angle : 120 degree

 Video Output :1.0 Vp-p 75 ohm

 Gain Control (AGC): Auto

 Operation Temperature : -20 +60 RH95% Max

 Storage Temperature: -30℃~+70 RH95% Max
