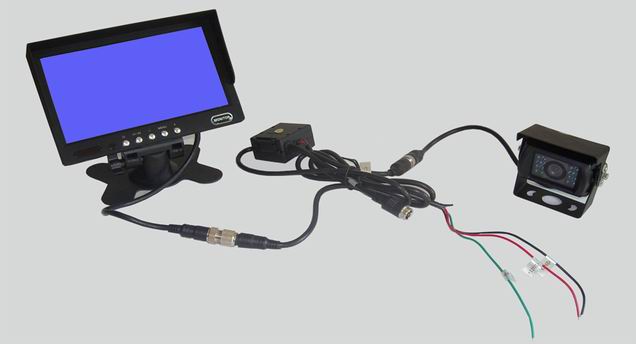

7 Inch TFT-LCD Monitor  ( RM-705 )
  ◆  Screen size: 7 Inch (diagonal length)

  ◆ Trigger cable one as standard ,two trigger cable (Optional)

  ◆  [16 : 9 ] wide screen display

  ◆  2 ways video & 2 audio inputs

  ◆  PAL & NTSC auto switching

  ◆  Resolution: 800 * 480 dots

  ◆  Power supply: DC 12 ~32V compatible

  ◆  Built in speaker

  ◆  Remote control, OSD menu;

  ◆  4 PIN connector , RCA A/V connector input ( optional) for special camera.

  ◆  View angel range:(left/right)65º (top)40º (down)15º

           Car Rear View Camera ( RC-502 )

◆ Image Pick-up Device : Sharp CCD  ( Sony Optional )

◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

◆ Horizontal Resolution: 420 TV Lines

◆ IR LEDS : 18 pcs Blue

◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

◆ Waterproof Resistance : IP 69
    ◆ IR project distance : 15 meters

◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

◆ Sync System: Internal Synchronization

◆ Lens :2.8mm standard , 2.1~3.6mm (optional)
    ◆ Angle: 120 degree

◆ Video Output :1.0 Vp-p 75 ohm

◆ Gain Control (AGC): Auto

◆ Operation Temperature : -20℃～+60℃ RH95% Max

◆ Storage Temperature: -30℃～+70℃ RH95% Max
