Model number: RM-1018Q

◆ Screen Ratio：16:9

◆ Back Light：300cd/m2

◆ Resolution：1024xRGBx600

◆ Compatible system   ：NTSC & PAL (Optional)

◆ OSD control ：Color, Brightness, Contrast, Volume, Language

(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)

◆ View angle ：up—15°，down—35°，left—45°，right—45°

◆ Image reversion ：UP/Down and Left/Right

◆ Power requirement：12-24V DC

◆ Power consumption：5W

◆ Storage temperature：      -30～80℃

◆ Working temperature：     -20℃ to 70℃

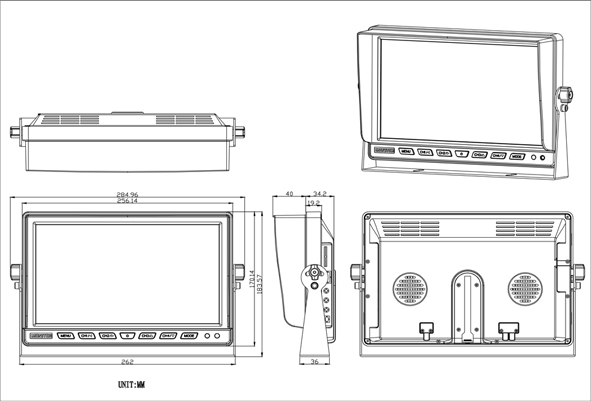

◆ Size：285mm*184mm*34mm mm

◆ Weight： 900g

◆ Video：4 way video input, 1 way audio input

◆ Number of Trigger and display 1 triggers

Optional functions ：Built-in speaker, 4 PIN connector suitable

 Accessories：   Remote controller, Power supply cable , User manual, Bracket

                  Car Rear  View Camera ( RC-502 )

  ◆ Image Pick-up Device :  Sharp CCD ( Sony Optional )

  ◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

  ◆ Horizontal Resolution: 420 TV Lines

  ◆ IR LEDS : 18 blue LED

  ◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

  ◆Waterproof Resistance : IP 69

  ◆ IR project distance : 15 meters

  ◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

  ◆ Sync System: Internal Synchronization

  ◆ Lens :2.8mm ,120 degree

  ◆ Video Output :1.0 Vp-p 75 ohm

  ◆ Gain Control (AGC): Auto

  ◆ Operation Temperature : -10℃～+50℃ RH95% Max

  ◆ Storage Temperature: -20℃～+60℃ RH95% Max
