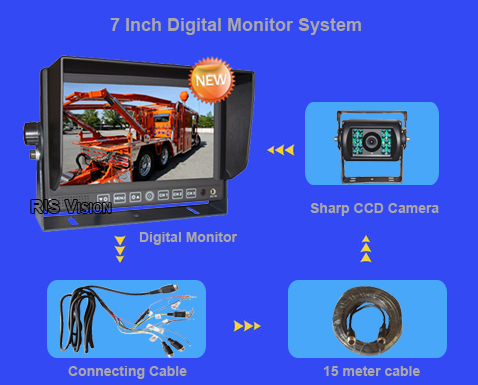

7 Inch Digital Monitor  ( RM-708 )

◆ 7 Inch Digital TFT Panel with Sunvisor

◆ Resolution : 800 x R.G.B x 480

◆ Aspect Ratio : 16:9 image

     ◆ 3 way video input , 2 way audio input, with AV-IN

◆ Power Supply : DC 9V-32V

◆ System : PAL / NTSC Auto-Switching

◆ OSD Menu , Remoter Control

◆ Built-in loudspeaker

◆ Contrast : 500 :1

◆ Brightness ： 400cd/m²

◆ Varying languages display

◆ With stand & U shape bracket

◆ Light sensor automatic adjustment

◆ Reference point and time control for reverse gear setting

     ◆ Dimension : 180 *121 * 23 mm

     ◆ Weight :1140g (including the package box and accessories)
     ◆ 31 *22 *9 cm ( package box dimension)

◆ Image Pick-up Device : Sharp CCD  ( Sony Optional )

◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

◆ Horizontal Resolution: 420 TV Lines

◆ IR LEDS : 18 pcs Blue

◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

◆ Waterproof Resistance : IP 69
    ◆ IR project distance : 15 meters

◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

◆ Sync System: Internal Synchronization

◆ Lens :2.8mm standard , 2.1~3.6mm (optional)
    ◆ Angle: 120 degree

◆ Video Output :1.0 Vp-p 75 ohm

◆ Gain Control (AGC): Auto

◆ Operation Temperature : -20℃～+60℃ RH95% Max

◆ Storage Temperature: -30℃～+70℃ RH95% Max


 Accessories :
