Specifications ：

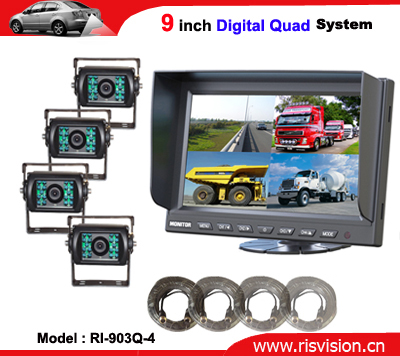

Model number： RM-903Q

◆ Monitor Size： 9 inch digital quad monitor

◆ Screen Ratio：       16:9

◆ Resolution ： 800*R.G.B*480

◆ Back Light LED： 250 cd/m2

◆ Contrast  ： 500：1

◆ Compatible system：    NTSC & PAL (automatically)OSD control Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)

◆ Anti –Shake： 4G

◆ Power：  12-24V DC

◆ Power consumption：    ＜7W

◆ Max. Current： ＜550mA

◆ Working temperature：   -10℃ ~ 60℃

◆ Storage temperature：   -20℃~70℃

◆ Size ：235mm*170mm*76mm

◆ Weight：700g

◆ AV Inputs ：4 way video input, 1 way audio input
◆ Number of Trigger and display：4 way trigger control,OSD can adjust the 4 way trigger switch

◆ Accessories：Remote controller, Power supply cable , User manual, Bracket

Car Rear View Camera ( RC-502 )
◆ Image Pick-up Device :  Sharp CCD ( Sony Optional )
◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)
◆ Horizontal Resolution: 420 TV Lines
◆ IR LEDS : 18 blue LED
◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED
◆Waterproof Resistance : IP 69
◆ IR project distance : 15 meters
◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec
◆ Sync System: Internal Synchronization
◆ Lens :2.8mm ,120 degree
◆ Video Output :1.0 Vp-p 75 ohm
◆ Gain Control (AGC): Auto
◆ Operation Temperature : -10℃～+50℃ RH95% Max
◆ Storage Temperature: -20℃～+60℃ RH95% Max



 System Connecting ：
