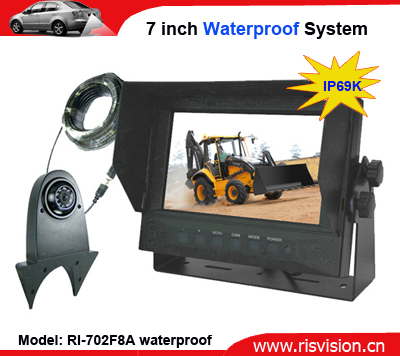

1. 7” color waterproof monitor.

2. Power supply: Automobile storage battery (10-32V).

3. Power consumption: 4W Maximum

4. Outer dimension: 200（L)X 42.5(W)X 145(H)mm

5. Resolution: 800 X 3 X（RGB）X 480

6. Contrast:  500:1

7. Brightness:  400cd/㎡.

8. Viewing angle: U: 50°/ D: 60°, R/L: 70°

9. Operating temperature: -10℃~+65℃

10. Storage temperature: -30℃ to + 80℃ RH90%

Notice : Our this waterproof monitor can do CH2 , CH4 and Quad function according to your requirement.


 Features:

Model No.: RC-5018A (Side View Camera)

Item                                                                    Value

◆ Type                                                    High resolution side view camera

◆ Image Sensor                                       SHARP CCD (SONY CCD &CMOS Chip Optional)

◆ TV System                                           NTSC/PAL Optional

◆ Effective Pixels                                      N: 510×492 pixels P: 500×582 pixels

◆ Horizontal Resolution                             420 TV Line

◆ Lens Angle                                            120°

◆ Minimum Illumination                              0Lux (LED ON)

◆ IR Led                                                   9pcs

◆ Night Vision distance                             45ft

◆ Operating Temperature                          -20℃~+70℃ RH95% Max

◆ Lens                                                     f=2.8mm

◆ Power Supply                                        DC12V

◆ Size                                                     205 (L) ×133 (w) ×45(H) mm
◆ N.W                                                      200g

◆ Waterproof Rate                                     IP68

◆ Material                                                 Explosion proof casing
