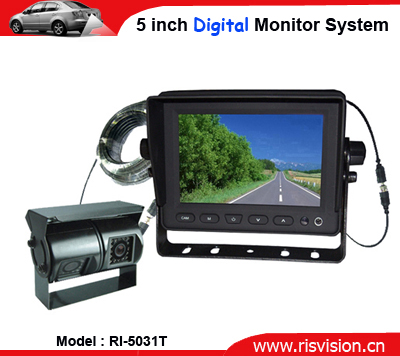

Specification ：

                      ◆ 5 inch Digital TFT panel

◆ Aspect Ratio: 16:9 image

◆ Reslution: 800*R.G.B*480

◆ 3 ways video input, 2 ways audio input,with AV-IN

◆ Power Supply: DC:12V-24V

◆ System: PAL&NTSC Auto-switching

  ◆ OSD Menu, Remoter control

  ◆ Built-in speaker

  ◆ Varying language display

  ◆ With stand&U shape bracket

  ◆ Reference point and time cotrol for reverse gear setting

◆ Dimension:141*103*25mm

 Specification:

◆ Color SONY CCD

◆ Color system: PAL/NTSC

◆ Resolution (pixels) : PAL:500(H)*582(V) ,NTSC:510(H)*492(V)

◆ Lens: Focal Length: 2.6mm/F2.0, 2.9mm/5.5

◆ Double Lens (15°movable at UP/Down )

◆ View Angle: each 120°

◆ Synchronization :Internal

◆ Horizontal Resolution: 420 TV Line

◆ Waterproof &dust resistance grade: IP69

◆ Mirror function

◆ 11 pcs IR LEDs for each camera for night vision (10m )

◆ Signal to Noise Ratio: >48dB

◆ Power Supply: DC12V±10%

◆ Power Consumption: ≤4W (each camera consumes no more than 2w)

◆ Operating Temperature Range: -30 to +70

◆ Storage Temperature Range: -40 to+80

◆ Dimension: 100(L)*66(W)*83(D) mm

◆ Weight Approx: 545g

◆ Connector :  4 PIN ( RCA Optional)
