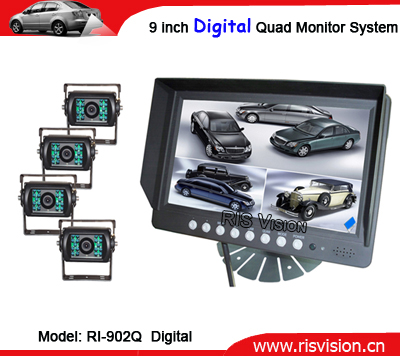

◆ 9 inch Super large quad monitor

◆  Built-in Quad Control Box function

◆ Support four cameras at the same time

◆  Single view / double view / quad view selectable

◆  16:9 wide screeen display

◆   PAL / NTSC auto switching

◆  Built in speaker

◆  Suit for 4 PIN DIN or RCA camera (Optional)

◆  Automatic switching with trigger

◆  Suitable for back view / side view cameras

◆  Resolution : 680 * ( RGB ) * 234

◆  Power Supply : DC 12~24V
     ◆  Size : 233mm (L) * 160mm (W) * 27mm (H)


  Specification:

   ◆ Image Pick-up Device :  Sharp CCD  ( Sony Optional )

◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

◆ Horizontal Resolution: 420 TV Lines

◆ IR LEDS : 18 blue LED

◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

◆ Waterproof Resistance : IP 69
   ◆ IR project distance : 15 meters

◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

◆ Sync System: Internal Synchronization

◆ Lens :2.8mm standard , 2.1mm~3.6mm (optional)
   ◆ Angle : 120 degree

◆ Video Output :1.0 Vp-p 75 ohm

◆ Gain Control (AGC): Auto

◆ Operation Temperature : -20℃～+60℃ RH95% Max

◆ Storage Temperature: -30℃～+70℃ RH95% Max
