We are professional Car Rear View Systems and Car Rear View Cameras factory, support DIY service. Choose you interesting monitors and camaras from our website, we can match them to be a completed system for you.

This following system is mainly used for trucks, trailers, buses and other heavy duty vehicles surveillance, back up or side view. Cameras can be installed on the front, back, both sides or even inside the bus as you need. Automatically switch to display the full picture while parking, turnning left or right.



  Specification:

                   Car Rear  View Camera  with Blue IR LED (RC-502)

◆ Image Pick-up Device :  Sharp CCD  ( Sony Optional )

◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

◆ Horizontal Resolution: 420 TV Lines

◆ IR LEDS : 18 blue LED

◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

◆Waterproof Resistance : IP 69

◆ IR project distance : 15 meters

◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

◆ Sync System: Internal Synchronization

◆ Lens :2.8mm , 120 degree

   ◆ Video Output :1.0 Vp-p 75 ohm

◆ Gain Control (AGC): Auto

◆ Operation Temperature : -20℃～+60℃ RH95% Max

◆ Storage Temperature: -30℃～+70℃ RH95% Max

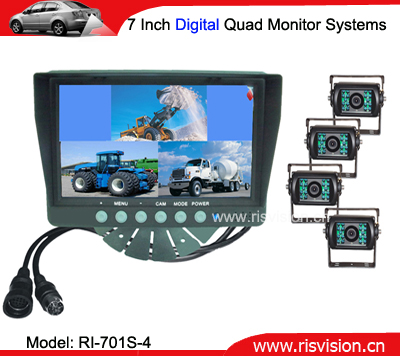

       7 inch TFT-LCD Digital Quad Monitor with Sunvisor ( RM-701S Digital Quad )


Built-in quad control box function
Support four camera inputs

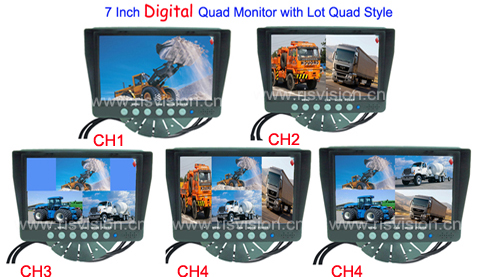

Single View/Split view/Quad view selectable
7 languages OSD display
PAL/NTSC optional, MIRROR/NORMAL image optional
Automatically turn on when the reversing gear is engaged
Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
With high-low voltage protection and short circuit protection

◆ Screen size:7” TFT LCD Digital Quad  monitor with sunvisor
◆ Type:Stand-alone monitor (16: 9) display
◆ Resolution：800 X 3 X（RGB）X 480
◆ Brightness: 400cd/㎡
◆ Contrast: 500 :1
◆ TV System: NTSC/PAL
◆ System:PAL & NTSC
◆ Power supply: 12~32V
◆ Power consumption:≤7W
◆ Operating temperature : -10℃~+65℃
