Model No.:

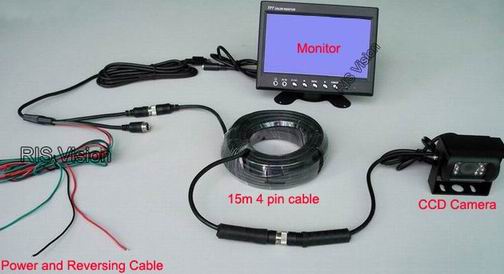

☆(RM-703 + RC-502 + 15m Cable) 7 Inch Car Rear View System
+86-13580347156

Detailed Product Description:

 We are professional Car Rear View Systems and Car Rear View Cameras factory, support DIY service. Choose you interesting monitors and camaras from our website, we can match them to be a completed system for you.



This following system is mainly used for trucks, trailers, buses and other heavy duty vehicles surveillance, back up or side view. Cameras can be installed on the front, back, both sides or even inside the bus as you need. Automatically switch to display the full picture while parking, turnning left or right.



 Specification:

                   CCD Rear View Camera with Blue IR LED (RC-502)

Image Pick-up Device :  Sharp CCD

Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

Horizontal Resolution: 420 TV Lines

IR LEDS : 18 blue LED

Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

Waterproof Resistance : IP 69

IR project distance : 15 meters

Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

Sync System: Internal Synchronization

Lens :2.8mm (optional)

Video Output :1.0 Vp-p 75 ohm

Gain Control (AGC): Auto

Operation Temperature : -20+60 RH95% Max

Storage Temperature: -30+70 RH95% Max



                           7 Inch Visor On-Dash LCD Monitor ( RM-703 )

Up/down, left/right functions

Switch function stand.

Remote control, OSD menu

Adjustable image brightness/color/contrast

Adjustable bracket installation

Car backing backlight function, automatic image switch to right or left

Screen size: 7” TFT LCD stand-alone monitor

System: PAL & NTSC auto switching

Type: Stand-alone monitor (16: 9) display

Resolution: 480 R.G.B x234 dots

Video input: V1/V2

Power consumption: ≤7W

Power supply: DC 12V

Operating temperature: 0~+50

Storage temperature: -20~+65
