RI-7015F-50318AHD waterproof

RI-7015F-5031AHD Waterproof monitor with forklift camera

RI-7082AHD

RI-713AHD

RI-711AHD

RI-705AHD

RI-7015F-50318AHD waterproof
Model No.:

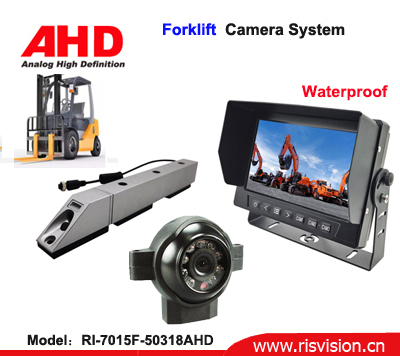

7 inch Waterproof Monitor with Forklift Camera and Rear Camera
+86-13580347156

Detailed Product Description:
   Specification :

                    7 inch Waterproof monitor with forklift camera and rear view camera

Image Sensor

AHD  CMOS,1/2.9″(2053 +8536H)

TV System

NTSC/PAL

Resolution

720P ,100W ( 1080P ,200W  Optional)

Effective Pixels

1920 x 720 (1920* 1080P Optional)

Lens

6mm

View Angle

53 degree

IR LED

4pcs white LED

Waterproof IP

IP 69K

Sync. System

Internal

Minimum Illumination

0.1 Lux (day), 0 Lux (with IR)

Outside size

319*35*30MM

Weight

490g

Max Current

<300mA

Current Drain

70±5mA

Voltage

DC 12V

Connector

4PIN or RCA (Optional)

Use for Forklift , magnetic install




Specifications

Model number: RM-7015FAHD Waterproof

Screen Ratio

7”high digital new panel/16:9image

Back Light Luminance

LED, 500-650cd/

Resolution

1024xRGBx600

View angle

Hor. L/ R(85 )Ver. UP/DOWN(85)Full perspective

AV Inputs

3 channel HD video input, single image display, support720P/960P/1080P  (Video Compatibility: CVBS /AHD)

Trigger

V2>V1>V3(Reference point and time control for reverse gear setting )

Backlight brightness



with light sensor receiver,can adjust screen brightness automatically day & night

Compatible system

NTSC & PAL (automatically)

OSD control

OSD menu, Remoter control (English, Simplify Chinese)

Image reversion

UP/Down and Left/Right

Power requirement

Input12V-36DC/output12V

Power consumption

5W

Storage temperature

-3080℃

Working temperature

-20℃ to 70℃

Waterproof grade

IP69K

Key color

Ferrous metal  ,Detachable sunshade&Metal U type bracket

Optional functions

4 PIN connector or RCA connector

Size

 188*127.2*34(79)mm

Accessories

Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench
