 Specification :
Camera Model number: RC-502AHD
|
◆ Effective Pixel
|
NTSC/PAL 1280(H)*960(V) 130W
|
|
|
◆ Horizontal Resolution
|
1.3Megapixel / 960P
|
|
|
◆ Image
|
Mirror ( Non-mirror optional )
|
|
|
◆ System
|
PAL/NTSC optional
|
|
|
◆ Video Output
|
AHD 1.0 vp-p/75 ohms
|
|
|
◆ Waterproof Level
|
IP68
|
|
|
◆ Shockproof Level
|
4G
|
|
|
◆ Power Requirements
|
DC 12V
|
|
|
◆ Connector
|
4PIN ( RCA optional )
|
|

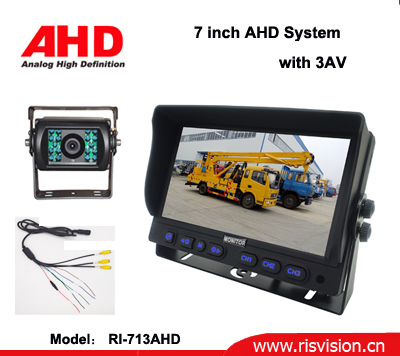

Monitor Model number: RM-713AHD (with shade)
◆ Screen Ratio: 7” high AHD monitor ,16:9 image
◆ Back Light LED: 400cd/㎡,(optional)
◆ Resolution: 1024xRGBx600
◆ Function : Light sensor automatic adjustment(optional)
◆ Compatible: system NTSC & PAL (automatically)
◆ View angel : Hor. L(70) R(70) Ver. UP(50) DOWN(70)
◆ Image reversion: UP/Down and Left/Right
◆ Power requirement: 12-32V DC
◆ Power consumption : 5W
◆ Storage temperature : -30〜80℃
◆ Working temperature: -20℃ to 70℃
◆ Exterior color: Black rubber oiling, Detachable sunshade, U type bracket
◆ AV Inputs: 3 way video input, 3 way audio input
◆ Number of Trigger & display : 3 ways Trigger function
|
