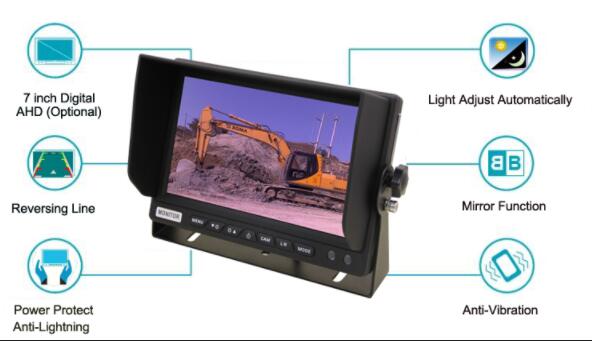

◆ 7 inch AHD vehicle mounted display (with shade)
|
|
◆ Aspect ratio:16:9image
|
|
◆ AV Resolution:1024*R.G.B*600(IPS)
|
|
◆ Back Light Luminance：LED, 500cd/㎡
|
|
◆ 2 channel HD video input, single image display,
◆ support 720P@25/30, 720P@50/60, 1080P@25/30
|
|
◆ Automatically switch to V2 when reversing
|
|
◆ Power supply: Power supply: DC 9V-36V input，12V output
|
|
◆ OSD menu,remote control
|
|
◆ System:PAL&NTSC auto-switching
|
|
◆ OSD control Brightness, Contrast, Saturation, Volume, Language
|
|
◆ View angle:L/R: 70°,UP:50°,down: 70° degree
|
|
◆ Optional functions4 PIN connector or RCA connector
|
|
◆ Sun visor / Butterfly bracket / fan bracket / embedded frame (optional)
Model :RC-502AHD
|
Effective Pixel
|
720P / 960P /1080P (Optional )
|
|
|
Illuminance
|
0.1Lux，Infrared night vision
|
|
|
CDS night version change
|
Change to black and white image automatically in the night
|
|
|
|
Mirror ( Non-mirror optional )
|
|
|
Electronic Shutter
|
Auto 1/25(30)-1/50,000
|
|
|
Exposure
|
Auto*2-*512
|
|
|
System
|
PAL/NTSC optional
|
|
|
Video Output
|
CVBS 1.0 vp-p/75 ohms
|
|
|
Waterproof Level
|
IP69K
|
|
|
Shockproof Level
|
4G
|
|
|
Power Requirements
|
DC 12V ( 24V optional)
|
|
|
Power Consumption
|
＜3W
|
|
|
Maximum current
|
＜250mA
|
|
|
Connector
|
4PIN ( RCA optional )
|
|
|
Working Temperature
|
-10℃ to 60℃
|
|
|
Storage Temperature
|
-20℃ to 70℃
|
|
|
Appearance
|
Aluminum alloy material shell, outside hanging design
|
|
|
+86-13580347156
Specification :
