RI-7015F-50318AHD waterproof

RI-7015F-5031AHD Waterproof monitor with forklift camera

RI-7082AHD

RI-713AHD

RI-711AHD

RI-705AHD

RI-705AHD
Model No.:
+86-13580347156

Detailed Product Description:
  Specification

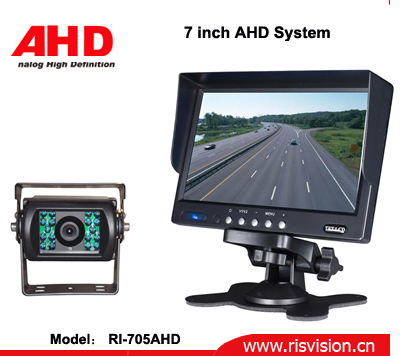

Model: RM-705AHD

◆  7 inch AHD vehicle mounted display (with shade)

◆  Aspect ratio:16:9image

◆  AV Resolution:1024*R.G.B*600(IPS)

◆  Back Light Luminance:LED, 500cd/㎡

◆  2 channel HD video input, single image display,
◆  support 720P@25/30, 720P@50/60, 1080P@25/30

◆  Automatically switch to V2 when reversing

◆  Power supply: Power supply: DC 9V-36V input,12V output

◆  OSD menu,remote control

◆  System:PAL&NTSC auto-switching

◆  OSD control Brightness, Contrast, Saturation, Volume, Language

◆  View angle:L/R: 70°,UP:50°,down: 70° degree

◆  Optional functions4 PIN connector or RCA connector

◆  Sun visor / Butterfly bracket / fan bracket / embedded frame (optional)



Model :RC-502AHD

Effective  Pixel

720P / 960P /1080P (Optional )



Illuminance

0.1LuxInfrared night vision



CDS night version change

Change to black and white image automatically in the night




Mirror ( Non-mirror optional )



Electronic Shutter

Auto 1/25(30)-1/50,000



Exposure

Auto*2-*512



System

PAL/NTSC optional



Video Output

CVBS 1.0 vp-p/75 ohms



Waterproof Level

IP69K



Shockproof Level

4G



Power Requirements

DC 12V  24V optional)



Power Consumption

<3W



Maximum current

<250mA



Connector

4PIN ( RCA optional )



Working Temperature

-10℃ to 60℃



Storage Temperature

-20℃ to 70℃



Appearance

Aluminum alloy material shell, outside hanging design
