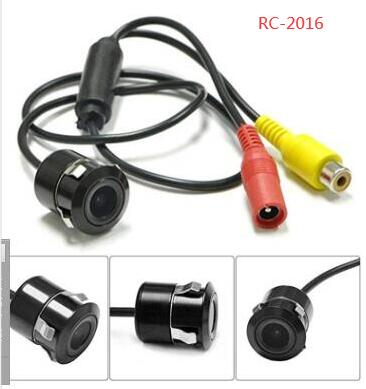

RC-2016 Dual Head Camera
Model No.:
+86-13580347156

Detailed Product Description:
       Features:
1.Anti fog glass.
2.CMOS imaging sensor.
3.Support NTSC video system.
4.High grade of waterproofing: IP66.
5.High-definition and 150 degree wide viewing angle.
6.Applicable to variety of vehicles: car, truck, RV, etc.
7.Snap-in design, it is easy to install.
8Its simple and modest design and small size won't draw any attention.
9.It helps to avoid incidents and accidents abrasion well.

Specification:
.Image Sensor: CMOS 1/4 MT9V125 or PC1030, color
.TV system: NTSC / PAL
.Horizontal Resolution: 420 TV lines
.Effective Pixels: NTSC:510(H) * 492(V)
.Minimum Illumination: 0.5 Lux
.Lens: 13.5mm
.View Angle: 150 degree
.Sync. System: internal
.S/N Ratio: >48dB
.Electronic Shutter: 1/50 to 1/100,000 seconds, 1/60 to 1/100,000 seconds
.Video Output: 1.0Vpp, 75Ohm
.White Balance: Auto
.Power: DC 12V
Current Consumption: 90mA
.Operating Temperature: -20 to + 70°C, 95% RH maximum
Storage Temperature: -40 to + 100°C, 95% RH maximum
Water-proof: Ip66~67
.Image Reverse: Left-right mirror


        1 x Power supply cable
        1 x Video cable
        1 x English user manual
