Specification:

◆ Made of high quality and durable material

◆ High-definition and wide viewing angles

◆ Support color CMOS/CCD image

◆ Support PAL/NTSC TV system

◆ With good waterproof function

◆With its elegant and contemporary design, this camera is very popular

◆Specifications:

◆Effective pixels: pal--628 x 586, ntsc--510 x 496

◆Shutter speed: 1/50 pal, 1/60 ntsc 1/10,000 seconds

◆Mini. illumination: 0.1 Lux/F

◆Video output: RCA connector, 1.0vP-P,75ω

◆power consumption: 110mA, max. 300mA wiht IR on

◆Power supply: 12V/24V

◆Operating temperature: -20°C - 90°C, RH 95%

◆Storage temperature: -30°C - 80°C, RH 95%

◆Lens angle: 135 degree/170 degree

◆Color: Black

Installation:

Mount the camera at the back of the car (on the license plate back window or other suitable place)

Connect the yellow video output connector to terminal display device

Connect the black power input connector to power output device

Connect the power of the camera to your reverse lights (If the camera is intended only for reversing) - red wire to positive

Package Content:

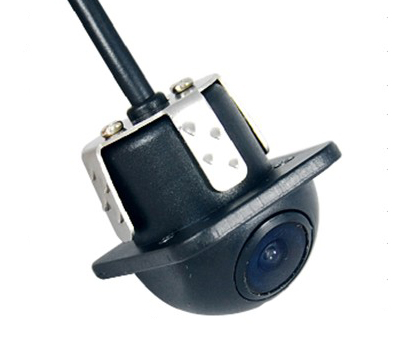

1 x Color car rear view camera （E318）

1 x Power supply cable

1 x Video cable

1 x English user manual
