Guilde Line


 Specification:

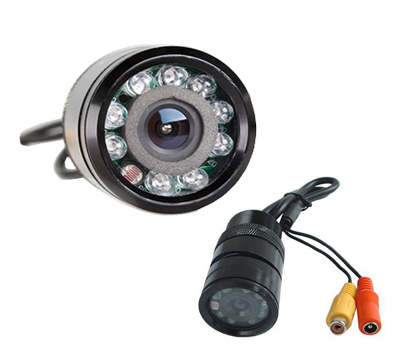

◆ Chipset: Colour CMOS  Camera

◆ Day & Night vision rear view camera

◆ Excellent Night Vision

◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

◆ Horizontal Resolution: 420 TV Lines

◆ Lens :2.8mm

◆ TV system: PAL / NTSC

◆ Usable Illumination : 1 Lux (F:1.2), 0 Lux with IR LED

◆ Waterproof Resistance : IP 67

◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

◆ Sync System: Internal Synchronization

◆ Visual angle:120°

◆ Video Output :1.0 Vp-p 75 ohm

◆ Gain Control (AGC): Auto

◆ Operation Temperature : -20℃～+60℃ RH95% Max

◆ Storage Temperature: -30℃～+70℃ RH95% Max
