◆Model Number: RC-2013

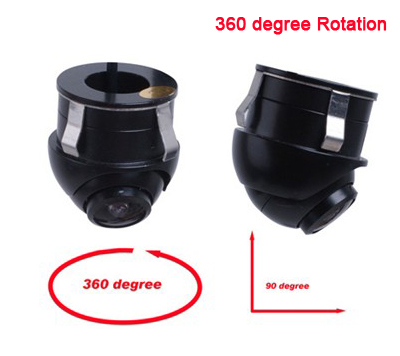

◆Products name: mini car camera with 18.5mm diameter, Rotation 360 degree

Sensor:1/4"Color CMOS
◆Type: Reverse Camera

◆Voltage: DC 12V

◆Power: <1w

◆Car Make: Universal

◆Place of Origin: Guangdong China (Mainland)

◆TV System: PAL/NTSC

◆Resolution(TV Lines): 480 TV lines

◆S/N ratio: Better than 60dB

◆Lens Angle(Deg): 170°

◆Min.illumination: 0.2Lux

◆Video Output: 1Vp-p,75 Ohm

◆Ip rating: Ip66~67

◆GW:0.2Kg; 75 pcs in 1 carton (Size:70*30*47cm);

◆Carton GW:15KG. Also,we can customize according to customer demand.

◆Delivery Detail:      3~7days after receiving deposit

◆Sample for testing: available and welcome

Installation:
Connect the yellow video output connector to terminal display device.
Connect the black power input connector to power output device.



Package Content:

1 x Color car rear view camera （E318）

1 x Power supply cable

1 x Video cable

1 x English user manual
