RI-701SB-4T Quad System with Trailer Cable

RI-701SB-3T Trailer System with Three Cameras

RI-7012B-T Trailer System with two Cameras

RI-7019B-2T Trailer System with Side View Camera

RI-5017-2T 5 Inch Digital Trailer System

RI-5012-T Digital System with two Cameras

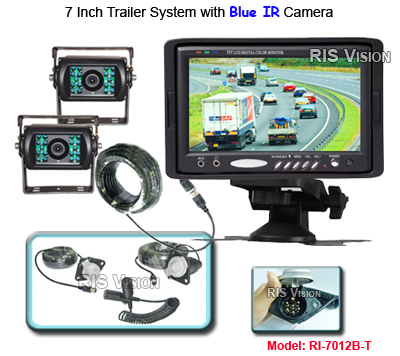

RI-7012B-T Trailer System with two Cameras
Model No.:

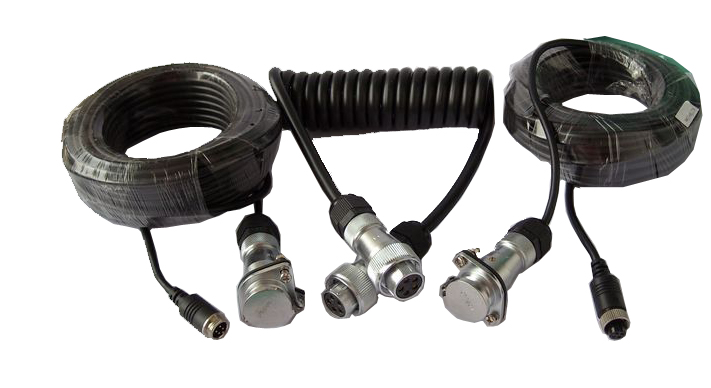

☆(RM-701 + 2pcs*RC-502 + Trailer cable 5PS + 1pcs*15m Cable) ※7 Inch Trailer System With two Blue IR Camera ※Trailer 5PS Cable ; Front 10m , Spring Coiled cable 2m, Rear 15m
+86-13580347156

Detailed Product Description:

 We are professional Car Rear View Systems and Car Rear View Cameras factory, support DIY service.
Choose you interesting monitors and camaras from our website, we can match them to be a completed system for
you.


                 This following trailer system is mainly used for trucks, trailers, buses and other heavy duty vehicles
            surveillance, back up or side view. Cameras can be installed on the front, back, both sides or even inside
       the bus as you need. Automatically switch to display the full picture while parking, turnning left or right.




 Specification:

                    Car Rear  View Camera (RC-502)



◆ Image Pick-up Device :  Sharp CCD ( Sony Optional )

◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

◆ Horizontal Resolution: 420 TV Lines

◆ IR LEDS : 18pcs blue LED

◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

◆Waterproof Resistance : IP 69

◆ IR project distance : 15 meters

◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

◆ Sync System: Internal Synchronization

◆ Lens :2.8mm  , 120 degree
   ◆ Video Output :1.0 Vp-p 75 ohm

◆ Gain Control (AGC): Auto

◆ Operation Temperature : -20℃～+60℃ RH95% Max

◆ Storage Temperature: -30℃～+70℃ RH95% Max

                           7" TFT-LCD Color Monitor (RM-701)


◆Model：RM-701 monitor

◆Eight Languages OSD Menu : Chinese,English,Japanese,French,Spanish, Russian,German and Arabic

◆ With audio function,earphone output jack

◆ Picture image may be adjusted for horizontal ,vertical

◆ Mirror Function : mirror/normal (optional)

◆ Used for DVD/VCD/GPS

◆ Wide range of power supply : 12-32 V (Optional)

◆ Full function remote control

◆ Display Pixel : 1440(H) × 234(V)

◆ Color System : RGB Delta

◆ TV System : PAL/NTSC

◆ Video Input : 1Vp-p three Way

◆ Aspect Ratio : 16:09

◆ Power Supply ; DC12V+10%,250mA

◆ Contrast : 300 : 1

◆ Brightness : 300cd/m2

◆ Visible Angle : U: 40/D:60 L/R: 60Autio Output: 0.3W (MAX)

◆ Loudspeaker : one 4.5cm round loudspeaker

◆ Outer Dimension : W 200mm x H 133mm x T 38mm (incl.frame)

◆ Weight : 540g  （without including the package box weight）
       ◆ Housing Colors : Black, silver (Optional)
