 We are professional Car Rear View Systems and Car Rear View Cameras factory, support DIY service
Choose you interesting monitors and camaras from our website, we can match them to be a
completed system for you.

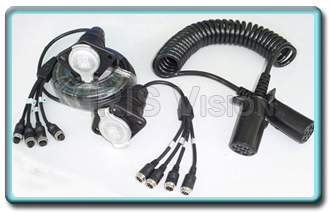

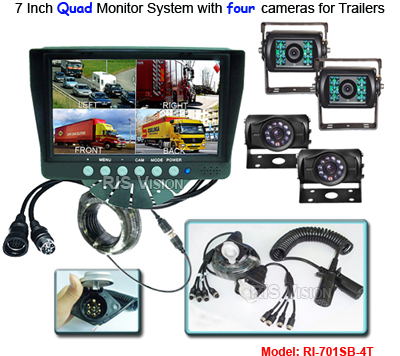

This following trailer system is mainly used for trucks, trailers, buses and other heavy duty vehicles
surveillance, back up or side view. Cameras can be installed on the front, back, both sides or even inside
the bus as you need. Automatically switch to display the full picture while parking, turnning left or right.
&n bsp;
 Specification:
Car Rear View Camera with Blue IR LED (RC-502)
◆ Image Pick-up Device : Sharp CCD ( Sony Optional )
◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)
◆ Horizontal Resolution: 420 TV Lines
◆ IR LEDS : 18pcs blue LED
◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED
◆Waterproof Resistance : IP 69
◆ IR project distance : 15 meters
◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec
◆ Sync System: Internal Synchronization
◆ Lens :2.8mm
◆ Video Output :1.0 Vp-p 75 ohm
◆ Gain Control (AGC): Auto
◆ Operation Temperature : -20℃～+60℃ RH95% Max
◆ Storage Temperature: -30℃～+70℃ RH95% Max
Car Rear View Camera (RC-5017)
Item &nb sp; Value
◆ Type High resolution backup camera
◆ Image Sensor SHARP CCD (SONY Chip Optional)
◆ TV System NTSC/PAL Optional
◆ Effective Pixels N: 510×492 pixels P: 500×582 pixels
◆ Horizontal Resolution 420 TV Line
◆ Lens Angle 120°
◆ Minimum Illumination 0Lux (LED ON)
◆ IR Led 9pcs
◆ Night Vision distance 45ft
◆ Operating Temperature -20℃~+70℃ RH95% Max
◆ Lens f=2.8mm
◆ Power Supply DC12V
◆ Size 70 (L) ×50 (w) ×40 (H) mm
◆ N.W &nb sp; 350g
◆ Waterproof Rate IP67
◆ Shell Material Aluminium alloy
7 Inch TFT--LCD Quad LCD Monitor with Sunvisor (RM-701S Quad)
Built-in quad control box function
Support four camera inputs
Single View/Split view/Quad view selectable
7 languages OSD display
PAL/NTSC optional, MIRROR/NORMAL image optional
Automatically turn on when the reversing gear is engaged
Trigger priority: CAM 1>CAM 2>CAM 3>CAM 4
With high-low voltage protection and short circuit protection
|
Model: RM-701S Quad
|
|
Screen size
|
7inch Quad LCD monitor
|
|
Type
|
Stand alone 16: 9 display
|
|
Color system
|
PAL/NTSC
|
|
Video input
|
4 channel
|
|
Power supply
|
12~24V DC
|
|
Resolution
|
1440(H) x 234(V)
|
|
Power consumption
|
less than 5W
|
|
Operating temperature
|
20℃~+70℃
|
|
Storage temperature
|
-30℃~+80 ℃
|
|
Dimension
|
183(L) x 125(W) x38 (D)
|
|
