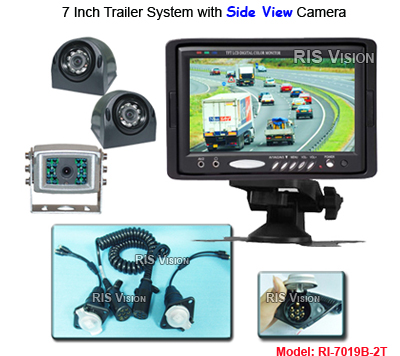

RI-7019B-2T Trailer System with Side View Camera
Model No.:

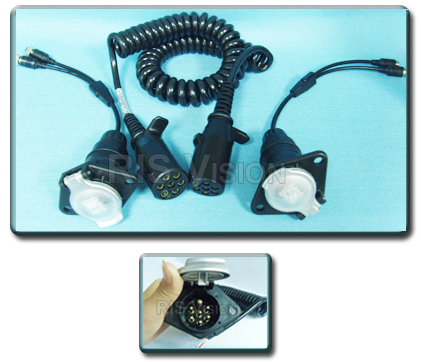

☆(RM-701 + RC-501 + 2pcs*RC-5019 + Trailer Cable +3pcs*15m Cable) 7 Inch Trailer System With Side View Camera
+86-13580347156

Detailed Product Description:


 We are professional Car Rear View Systems and Car Rear View Cameras factory, support DIY service.
Choose you interesting monitors and camaras from our website, we can match them to be a completed
system for you.

            This following trailer system is mainly used for trucks, trailers, buses and other heavy duty vehicles
            surveillance, back up or side view. Cameras can be installed on the front, back, both sides or even inside
            the bus as you need. Automatically switch to display the full picture while parking, turnning left or right.



                         Car Side View Camera (RC-5019)

   Item                                                                           Value

 ◆ Type                                                                  High resolution side view camera

 ◆ Image Sensor                                                     SHARP CCD (SONY CCD &CMOS Chip Optional)

 ◆ TV System                                                         NTSC/PAL Optional

 ◆ Effective Pixels                                                   N: 510×492 pixels P: 500×582 pixels

 ◆ Horizontal Resolution                                          420 TV Line

 ◆ Lens Angle                                120°

 ◆ Minimum Illumination                                           0Lux (LED ON)

 ◆ IR Led                                                                9pcs

 ◆ Night Vision distance                                            45ft

 ◆ Operating Temperature                                         -20℃~+70℃ RH95% Max

 ◆ Lens                                                                   f=2.8mm

 ◆ Power Supply                               DC12V

 ◆ Size                                       Φ50 mm

 ◆ N.W                                                                    200g

 ◆ Waterproof Rate                                                   IP67

 ◆  Material                                                               Explosion proof casing


               Car Rear  View Camera ( RC-501 )

◆ Image Pick-up Device : Sharp CCD ( Sony  Optional )

◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

◆ Horizontal Resolution: 420 TV Lines

◆ IR LEDS : 18pcs blue IR LED

◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

◆ Waterproof Resistance : IP 69
   ◆ IR project distance : 15 meters

◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

◆ Sync System: Internal Synchronization

◆ Lens :2.8mm

◆ Video Output :1.0 Vp-p 75 ohm

◆ Gain Control (AGC): Auto

◆ Operation Temperature : -20℃ ～+60℃ RH95% Max


                  7" TFT-LCD Color Monitor with Three Video (RM-701)

◆Eight Languages OSD Menu : Chinese,English,Japanese,French,Spanish, Russian,German and Arabic

◆ With audio function,earphone output jack

◆ Picture image may be adjusted for horizontal ,vertical

◆ Mirror Function : mirror/normal (optional)

◆ Used for DVD/VCD/GPS

◆ Wide range of power supply : 12-32 V (Optional)

◆ Full function remote control

◆ Display Pixel : 1440(H) × 234(V)

◆ Color System : RGB Delta

◆ TV System : PAL/NTSC

◆ Video Input : 1Vp-p three Way

◆ Aspect Ratio : 16:09

◆ Power Supply ; DC12V+10%,250mA

◆ Contrast : 300 : 1

◆ Brightness : 300cd/m2

◆ Visible Angle : U: 40/D:60 L/R: 60Autio Output: 0.3W (MAX)

◆ Loudspeaker : one 4.5cm round loudspeaker

◆ Outer Dimension : W 200mm x H 133mm x T 38mm (incl.frame)

◆ Weight : 540g  （without including the package box weight）
       ◆ Housing Colors : Black, silver (Optional)
