 We are professional Car Rear View Systems and Car Rear View Cameras factory, support DIY service. Choose you interesting monitors and camaras from our website, we can match them to be a completed system for you.
Specification:

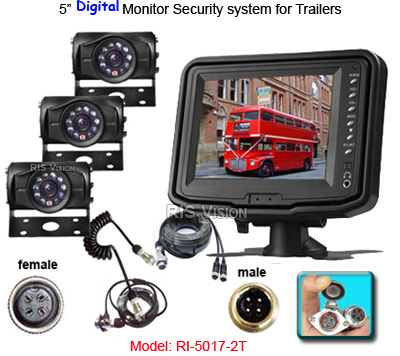

This following trailer system is mainly used for trucks, trailers, buses and other heavy duty vehicles surveillance, back up or side view. Cameras can be installed on the front, back, both sides or even inside the bus as you need. Automatically switch to display the full picture while parking, turnning left or right.
 Specification:
Car Rear View Camera (RC-5017)
Item Value
◆ Type High resolution backup camera
◆ Image Sensor SHARP CCD (SONY Chip Optional)
◆ TV System NTSC/PAL Optional
◆ Effective Pixels N: 510×492 pixels P: 500×582 pixels
◆ Horizontal Resolution 420 TV Line
◆ Lens Angle 120°
◆ Minimum Illumination 0Lux (LED ON)
◆ IR Led 9pcs
◆ Night Vision distance 45ft
◆ Operating Temperature -20℃~+70℃ RH95% Max
◆ Lens f=2.8mm
◆ Power Supply DC12V ~ 24V
◆ Size &nb sp; 70 (L) ×50 (w) ×40 (H) mm
◆ N.W &nb sp; 350g
◆ Waterproof Rate IP67
◆ Shell Material Aluminium alloy
5" TFT-LCD Digital Color Monitor
&nbs p; Used for VCD/DVD/GPS
◆ Products: LCD Color Monitor
◆ Display Device : Color TFT-LCD
◆ Screen Size : 5 Inch
◆ Aspect Ratio :16:9
◆ Resolution : 640(H) x RGB x 480(V)
◆ Audio Output : 0.5W(Max)
◆ Video Input : 1Vp-p two Way
◆ Mirror function: YES
◆ Loudspeaker : one 4.0cm round loudspeaker
◆Eight Languages OSD Menu: Chinese, English, Japanese, French, Spanish, Russian, German and
Arabic
◆ Power supply : 12~24V
◆ Power Consumption : about 8W
◆ Outer Dimension : W 163mm x H 125mm x T 30.5mm
◆ Weight ; about 330g (include headrest shell)
◆ Housing Colors : Black,silver (Optional)
◆TV System: PAL/NTSC
|
