Specifications

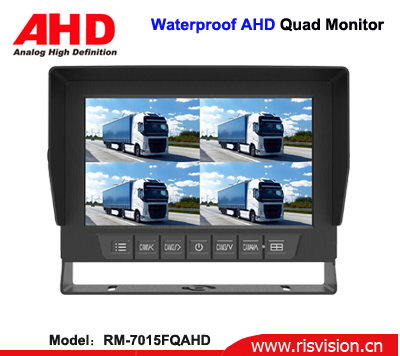

Model number: RM-7015FQAHD

Screen Ratio

7″high digital new panel ,16:9image

Back Light Luminance

/Resolution

View angle（standard）

 LED500cd/㎡ /1024xRGBx600/Hor. L/ R(180 )Ver. UP/DOWN(180)

AV Inputs

 Four-channel AHD video input,adjustable display of image1/ image2/ image3/ image4,Support AHD 720P@25/30,960P@50/60 ，1080P@25/30Pand CVBS multi-video hybrid input

Audio Input

Built-in speaker，1 way audio input(V2)

Trigger and display

4 ways Trig function Trigger priority:V2>V1>V3>V4

Other features

4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor

Compatible system

NTSC & PAL (automatically)

OSD control

Color, Brightness, Contrast, Volume, Language

(English, Chinese)

Power requirement

Input 9V-36DC/ output，12V

Power consumption

7W

Working temperature

-20℃ to 70℃

Storage temperature

-30℃ to 80℃

Exterior color

Black rubber oiling,The key blue light,

Monitor And Camera Connector

RCA/ 4pin connector (Optional)

Accessories

Remote controller, Power supply cable , User manual,  Metal U type bracket
