Specifications

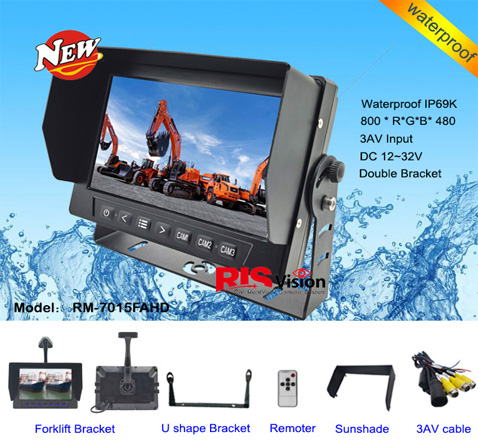

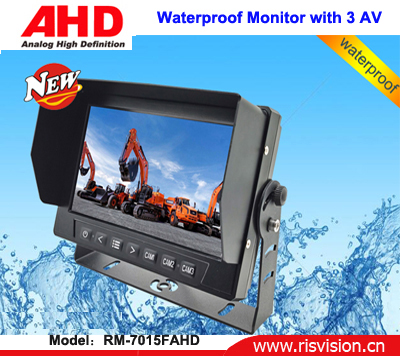

Model number: RM-7015FAHD

Screen Ratio

7”high digital new panel/16:9image

Back Light Luminance

LED, 500-650cd/㎡

Resolution

1024xRGBx600

View angle

Hor. L/ R(85 )Ver. UP/DOWN(85)Full perspective

AV Inputs

3 channel HD video input, single image display, support720P/960P/1080P  (Video Compatibility: CVBS /AHD)

Trigger

V2>V1>V3(Reference point and time control for reverse gear setting )

Backlight brightness

with light sensor receiver,can adjust screen brightness automatically day & night

Compatible system

NTSC & PAL (automatically)

OSD control

OSD menu, Remoter control (English, Simplify Chinese)

Image reversion

UP/Down and Left/Right

Power requirement

Input，12V-36DC/output，12V

Power consumption

5W

Storage temperature

-30〜80℃

Working temperature

-20℃ to 70℃

Waterproof grade

IP69K

Key color

Ferrous metal  ,Detachable sunshade&Metal U type bracket

Optional functions

4 PIN connector or RCA connector

Size

 188*127.2*34(79)mm

Accessories

Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench
