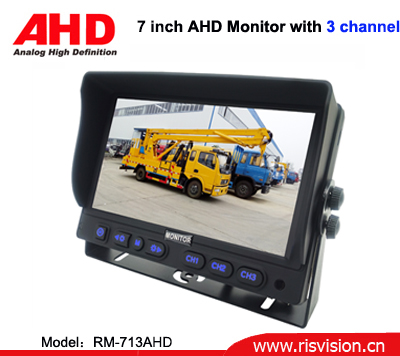

Model number: RM-713AHD (with shade)

   ◆ Screen Ratio: 7” high AHD monitor ,16:9 image
   ◆ Back Light LED: 400cd/㎡,(optional)
   ◆ Resolution: 1024xRGBx600
   ◆ Function : Light sensor automatic adjustment(optional)
   ◆ Compatible:  system NTSC & PAL (automatically)
   ◆ OSD control:  Color, Brightness, Contrast, Volume, Language
(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)

   ◆ View angel : Hor. L(70) R(70)   Ver. UP(50) DOWN(70)
   ◆ Image reversion:  UP/Down and Left/Right
   ◆ Power requirement:  12-32V DC
   ◆ Power consumption : 5W
   ◆ Storage temperature :  -30〜80℃
   ◆ Working temperature: -20℃ to 70℃
   ◆ Impact rating:  4G

   ◆ Exterior color:  Black rubber oiling, Detachable sunshade, U type bracket
   ◆ AV Inputs:  3 way video input, 3 way audio input
   ◆ Number of Trigger & display : 3 ways Trigger function

   ◆ Connector : RCA/ 4pin connector (Optional)
   ◆ Accessories Remote controller, Power supply cable , User manual, Bracket

 Connecting :
