◆ Image Pick-up Device : 1/3" 1200TV

    ◆ Horizontal Resolution: 1200 TV Lines

◆ IR LEDS : 8pcs white LED

◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

◆ Waterproof Resistance : IP 69K
◆ Sync System: Internal Synchronization

◆ Lens :2.8mm standard , 3.6mm (optional)
    ◆ Angle : 120 degree

◆ Video Output :1.0 Vp-p 75 ohm

◆ Gain Control (AGC): Auto

◆ Operation Temperature : -20℃ ～+60℃ RH95% Max

◆ Storage Temperature: -30℃～+70℃ RH95% Max

◆ Power :12V  (12~24V Optional)

◆ Connector : 4PIN (DC+RCA optional)

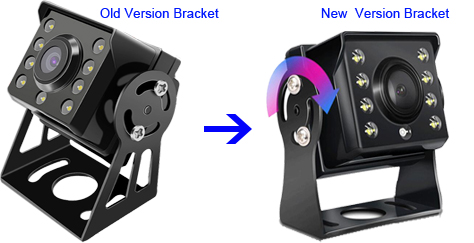

Camera Bracket changed:
