Model No.:

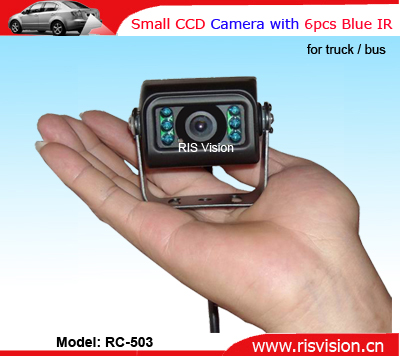

Small CCD camera with 6pcs IR
+86-13580347156

Detailed Product Description:




  Feature:



Super Wide angle

  Infrared LED light: 6 pcs blue IR LED
  Excellent night vision
  Mirror/normal image according to your requirement

      Waterproof resistance : IP 69 ,Waterproof and weather resistant housing for outdoor use


Specification:



  ◆ Image Pick-up Device : Sharp  CCD Camera ( Sony Optional )

  ◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

  ◆ Horizontal Resolution: 420 TV Lines

  ◆ IR LEDS : 6 pcs blue

  ◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

  ◆ Waterproof Resistance : IP 69

  ◆ IR project distance :6-9 meters

  ◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

  ◆ Sync System: Internal Synchronization

  ◆ Lens :2.8mm standard 2.1~3.6mm (optional)
      ◆Angle : 120 degree

  ◆ Video Output :1.0 Vp-p 75 ohm

  ◆ Gain Control (AGC): Auto

  ◆ Operation Temperature : -20℃+60℃ RH95% Max

  ◆ Storage Temperature: -30℃+70℃ RH95% Max

 Dimension:
