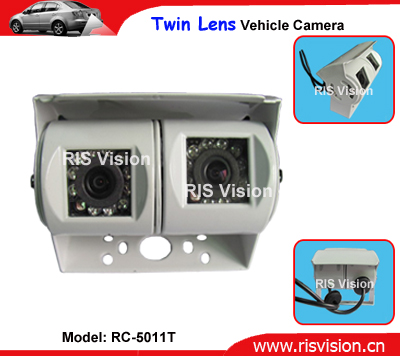

RC-5011T Twin Lens Camera
Model No.:
Double/Twin Lens Camera
+86-13580347156

Detailed Product Description:


 Main Features:

       2pcs separate cameras to provide full view on the back of the vehicle

       15 degree adjustment each time between two cameras




 Specification:

◆ Color SONY CCD
◆ Color system: PAL/NTSC
◆ Resolution (pixels) : PAL:500(H)*582(V) ,NTSC:510(H)*492(V)
◆ Lens: Focal Length: 2.6mm/F2.0, 2.9mm/5.5
◆ Double Lens (15°movable at UP/Down )
◆ View Angle: each 120°
◆ Synchronization :Interna
◆ Horizontal Resolution: 420 TV Line
◆ Waterproof &dust resistance grade: IP69
◆ Mirror function
◆ 11 pcs IR LEDs for each camera for night vision (10m )
◆ Signal to Noise Ratio: >48dB
◆ Power Supply: DC12V±10%
◆ Power Consumption: ≤4W (each camera consumes no more than 2W )
◆ Operating Temperature Range: -30 to +70
◆ Storage Temperature Range: -40 to+80
◆ Dimension: 100(L)*66(W)*83(D) mm
◆ Weight Approx: 545g
◆ Connector :  4 PIN ( RCA Optional)
