RW-7013W Digital Wireless System

RW-710WDVR(4) Digital Wireless Quad DVR System

RW-710WDVR(1) Digital Wireless Quad DVR System

RW-702HW-4 Digital Wireless System

RW-702HW Digital Wireless System

RW-701W2

RW-701W2-4 Popular Wireless System

RW-701W black wireless system

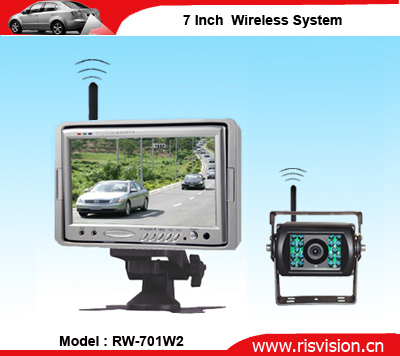

RW-701W2
Model No.:

Detailed Product Description:

Feature:
Wide voltage input adaptability :11~32 DC
Audio/video input and output ports
Easy to install and detach
7" COLOR TFT-LCD color monitor
Weather resistance housing for outdoor use



Specification:

      2.4GHz Wireless TFT LCD Monitor ( RM-701W
Display component: 7 inches Color TFT-LCD
Built in 2.4GHz (2.414/2.432/2.450/2.468) wireless receiver manually & automatically switch to the
     reverse image.
Super sharp high picture:  1440 (h) x 234 (v) resolution
Brightness: 300cd/cm2  Contrast: 150:1,
Maximum viewable angle: 15° (up), 35° (down), 55° (left/right)
Receiving sensitivity: -85dB
Color system: PAL/NTSC

Eight languages OSD menu: Chinese, English, Russian, German, Arabic, Italian, Spanish and
     portuguese

Includes flat surface / in-dash and adjustable universal mounts

Shock resistant, special design for mobile use
Silver high impact monitor enclosure

Can Built-in speaker with earphones included
Loudspeaker : one 4.5cm round loudspeaker
Power consumption: DC11-32V
Outer Dimensions: (W) 200mmX (H) 133mmX(T) 38mm

Weight: about  540g


Color CCD Wireless Rear View Camera ( Model: RC-502W )
The camera Alloyed shell
Waterproof resistance: IP 69
IR LED light:18pcs blue LED

IR distance : approx.
15m
Night Vision available ,day/night for automatic adjustment

TV system: PAL/NTSC

Image Pick-up Device : Sharp CCD ( Sony Optional )
Audio function : optional

The lens focal length and angle:
2.8mm 120°
Video Output : 1.0Vp-p 75Ω , Negative

Operation Temperature : -20- +70  RH 95% Max

Power Supply : DC12V±10%,250mA
 ( 12~ 32V Optional )
Housing Colours : Black ,Silver ( Optional )

 Accessories:
