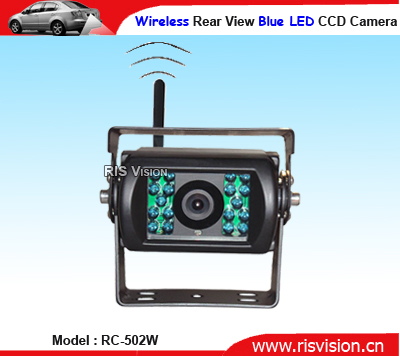

RC-502W Black
Model No.:
Wireless CCD Camera
+86-13580347156

Detailed Product Description:
Material Object :

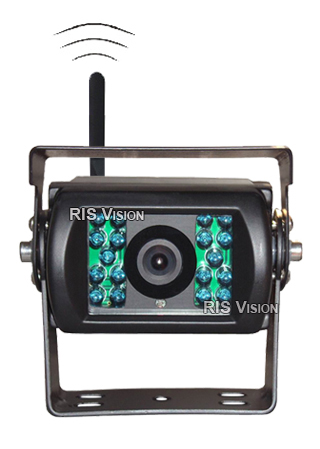

                     Blue IR LED Wireless Camera



 Feature:

Heavy duty alloyed shell ,Built-in 2.4G wireless AV Color transmitter

Super Wide Angle

    Infrared LED light: 18 pcs Blue
    Excellent night vision
    IR distance: approx. 15m
    Mirror/normal image according to your requirement

Waterproof resistance : IP 69 ,Waterproof and weather resistant housing for outdoor use

 Specification:

Image Pick-up Device : Sharp CCD   ( Sony Optional)

Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

Horizontal Resolution: 420 TV Lines

IR LEDS : 18 pcs blue

Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

Waterproof Resistance : IP 69

IR project distance : 15 meters

Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

Sync System: Internal Synchronization

Lens :2.8mm standard , 2.1~3.6mm (optional)
    ◆ Angle : 120 degree

Video Output :1.0 Vp-p 75 ohm

Gain Control (AGC): Auto

Operation Temperature : -20+60 RH95% Max

Storage Temperature: -30+70 RH95% Max

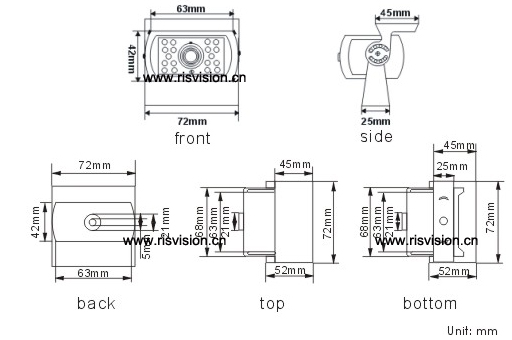

  Dimension:
