◆Heavy duty alloyed shell
     ◆ Super Wide Angle

 ◆ Excellent night vision
 ◆ IR distance: approx. 10m
 ◆ Infrared LED light: 18 pcs Blue
 ◆ Mirror/normal image according to your requirement

    ◆Waterproof resistance : IP 69

  Specification:

     ◆ Image Pick-up Device : Sharp CCD  ( Sony Optional )

◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

◆ Horizontal Resolution: 420 TV Lines

◆ IR LEDS : 18 pcs cable

◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

◆ Waterproof Resistance : IP 69

◆ IR project distance : 15 meters

◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

◆ Sync System: Internal Synchronization

◆ Lens :2.8mm standard , 2.1~3.6mm (optional)
      ◆Angle : 120 degree

◆ Video Output :1.0 Vp-p 75 ohm

◆ Gain Control (AGC): Auto

◆ Operation Temperature : -20℃～+60℃ RH95% Max

◆ Storage Temperature: -30℃～+70℃ RH95% Max

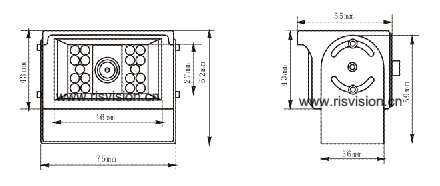

 Dimension:
