Item                                                                Value

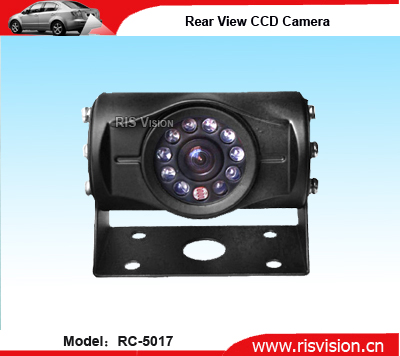

◆ Type                                                           High resolution backup camera

◆ Image Sensor                                          SHARP CCD (SONY Chip Optional)

◆ TV System                                                 NTSC/PAL Optional

◆ Effective Pixels                                         N: 510×492 pixels P: 500×582 pixels

◆ Horizontal Resolution                            420 TV Line

◆ Lens Angle                                                120°

◆ Minimum Illumination                            0Lux (LED ON)

◆ IR Led                                                         9pcs

◆ Night Vision distance                     45ft

◆ Operating Temperature                    -20℃~+70℃ RH95% Max

◆ Lens                                                             f=2.8mm

◆ Power Supply                                 DC12V

◆ Size                                                              70 (L) ×50 (w) ×40 (H) mm

◆ N.W                                                               350g

◆ Waterproof Rate                                       IP68
◆ Shell Material                                   Aluminium alloy

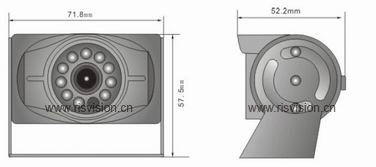

 Size:
