◆Image Pick-up Device :Sharp CCD  ( Sony Optional )

◆Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

◆Horizontal Resolution: 420 TV Lines

◆IR LEDS : 18 pcs Blue

◆Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

◆Waterproof Resistance : IP 69
    ◆ IR project distance : 15 meters

◆Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

◆Sync System: Internal Synchronization

◆Lens :2.8 mm standard  2.1mm ~3.6mm (optional)
     ◆Angle : 120 degree

◆Video Output :1.0 Vp-p 75 ohm

◆Gain Control (AGC): Auto

◆Operation Temperature : -20℃ ～+60℃ RH95% Max

◆Storage Temperature: -30℃～+70℃ RH95% Max

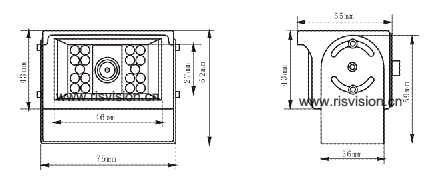

 Dimension:
