RC-6032 New Mercedes Vito
Model No.:

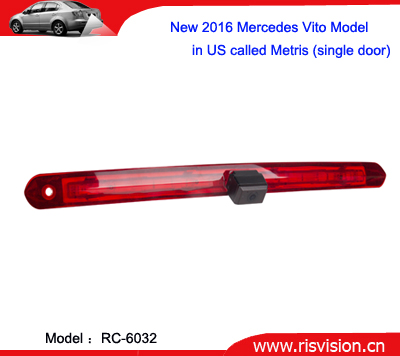

New 2016 Mercedes Vito Model (In US called Metris single door )
+86-13580347156

Detailed Product Description:
    Specification :
B1.Product Features
1.Use 1/3CMOS sensor,support analog hd video 700TVL
2.Waterproof grade IP69K
3.Support mirror switching and ruler control functions
4.With night vision function, infrared distance is 6m
B2.Specifications
  Image Sensor 1/3 CMOS PC1058K
  TV System NTSC/PAL
  Effective Pixels 976(H)*592(V)
  Sensing Area 4.880mm*3.670mm
  Sync. System Internal
  Resolution 700 TVL
  Minimum Illumination  0.1 Lux (day), 0 Lux (with IR)
  Microphone Optional
  IR LED Qty 2 PCS
  Video Output  1.0 Vp-p/75 Ohm
  Scanning System interlace
  AGC AUTO
  Signal to noise ratio Better than 48dB
  White balance AUTO
  Gamma Consumption 0.45
  Electronic Shutter AUTO
  Backlight Compensation AUTO
  Power Supply DC12V
  Lens 1.7mm
  Lens Angle 145°
  Current Drain Daytime current 50mA ± 5, night vision current 210mA ± 5
  Operating Temperature   -20℃-70℃,RH 95% MAX
  Storage Temperature   -30℃-80℃,RH 95% MAX
C1.Accessories 1.Extension cable 2.JenaLabs 3.Power cord 4.RCA adapter 5.Manual
