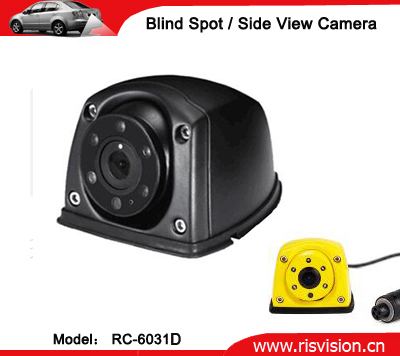

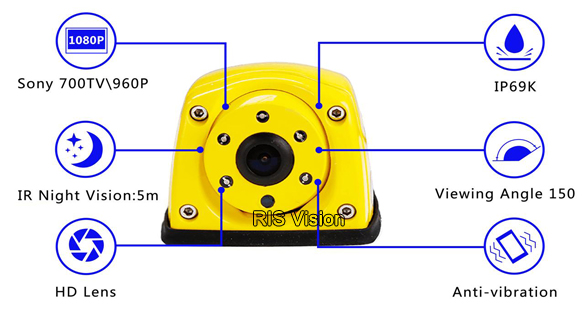

Model No.: RC-6031 (Side View Camera)

Item                                                                             Value

◆ Type                                                                     High resolution side view camera

◆ Image Sensor                                                      SHARP CCD (SONY CCD &CMOS Chip Optional)

◆ TV System                                                           NTSC/PAL Optional

◆ Effective Pixels                                                    N: 510×492 pixels P: 500×582 pixels

◆ Horizontal Resolution                                          420 TV Line

◆ Lens Angle                                                         120°

◆ Minimum Illumination                                          0Lux (LED ON)

◆ IR Led                                                                 6pcs

◆ Night Vision distance                                         45ft

◆ Operating Temperature                                      -20℃~+70℃ RH95% Max

◆ Lens                                                                    f=2.8mm

◆ Power Supply                                                    DC12V

◆ N.W                                                                     200g

◆ Waterproof Rate                                               IP68
◆ Material                                              Explosion proof casing
