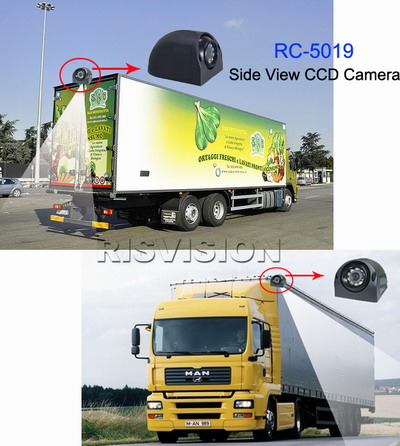

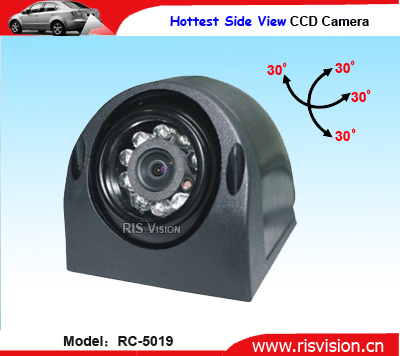

Model No.: RC-5019 (Side View Camera)

Item                                                                             Value

◆ Type                                                                     High resolution side view camera

◆ Image Sensor                                                    SHARP CCD (SONY CCD &CMOS Chip Optional)

◆ TV System                                                           NTSC/PAL Optional

◆ Effective Pixels                                                   N: 510×492 pixels P: 500×582 pixels

◆ Horizontal Resolution                                      420 TV Line

◆ Lens Angle                                                         120°

◆ Minimum Illumination                                      0Lux (LED ON)

◆ IR Led                                                                 9pcs

◆ Night Vision distance                                       45ft

◆ Operating Temperature                                   -20℃~+70℃ RH95% Max

◆ Lens                                                                    f=2.8mm

◆ Power Supply                                                    DC12V

◆ Size                                  Φ50 mm

◆ N.W                                                                     200g

◆ Waterproof Rate                                               IP68
◆ Material                                              Explosion proof casing

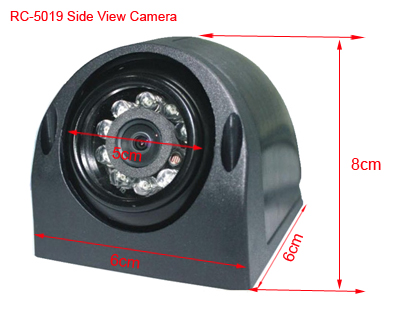

 Dimension :
