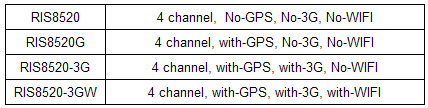

RIS8520 series including all the following models:
 Main features:
1. H.264 main profile Video compression format;
2. Can work with power supply ranging from DC8V to DC36V;
3. Supports Manual Record, Motion Detect and scheduled Record;
4. Video resolution: D1/HD1/CIF/QCIF selectable for each channel; frame rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel;
5. Supports 4 channels "Video & Audio" recording and playback simultaneously;
6. Supports 4 channels "alarm input” and 1 channel "alarm output";
7. Video clips can be saved onto dual SD cards up to 32GB;
8. Video file can be backed up in format H.264 or AVI;
9. Supports Mouse & IR remote control for easy operation;
10. With GPS function, records video with GPS data and shows the location when playing the records; (Optional);
11. Multiple language options, covers almost all main languages all over the world;
12. Records video clips with date/time stamping on them;
13. Works with both PAL and NTSC TV standard;
1 4.With 10M/100M RJ45 port;
15. With Wi-Fi function, Can realize remte view via the wirless network.(Optional);
16. With 3G function, Support remote view. (Optional)
  Specifications:
|
Working Power
|
DC8V-DC36V
|
|
Working Temperature
|
-10C to +50C
|
|
Working Humidity
|
15%-80%
|
|
Max Memory
|
Dual SD Cards up to 32 GB
|
|
Compression Format
|
H.264
|
|
Video Format
|
H.264 or AVI
|
|
Record Mode
|
Mobile DVR; 4 CH Mobile DVR; 4 CH SD CARD DVR; Vehicle DVR; GPS DVR; Wi-Fi DVR; 3G DVR; BUS DVR; CAR DVR
|
|
Video Resolution
|
D1/HD1/CIF/QCIF for each Channel
|
|
Frame Rate
|
1-25fps (PAL) or 1-30fps (NTSC) for each channel;
|
|
Record Signal
|
4 Channels Video & Audio
|
|
TV Standard
|
PAL and NTSC
|
|
File Overwrite
|
Optional
|
|
Compatible camera
|
Common CMOS or CCD Camera
|
|
Alarm in/out
|
4 Channels inputs; 1 Channel output
|
|
USB Port
|
USB 2.0x2
|
|
Mouse / IR Remote
|
Supported
|
|
Menu Language
|
Multiple Language Options
|
|
Dimension
|
138mm (L) x 112mm (W) x 38mm (H)
|
|
Weight
|
~1.0kg
|
|
Optional functions
|
GPS, Wi-Fi, 3G
|
 Packing details:
RIS8520-3GW DVR * 1pc; IR Remote * 1pc; Power Cable * 1pc; Combined AV Cable * 1pc; Combined Alarm Cable * 1pc; Video Player Disc* 1pc; User Manual * 1pc; GPS antenna* 1pc; Wi-Fi antenna * 1pc; 3G antenna * 1 pc
 |
