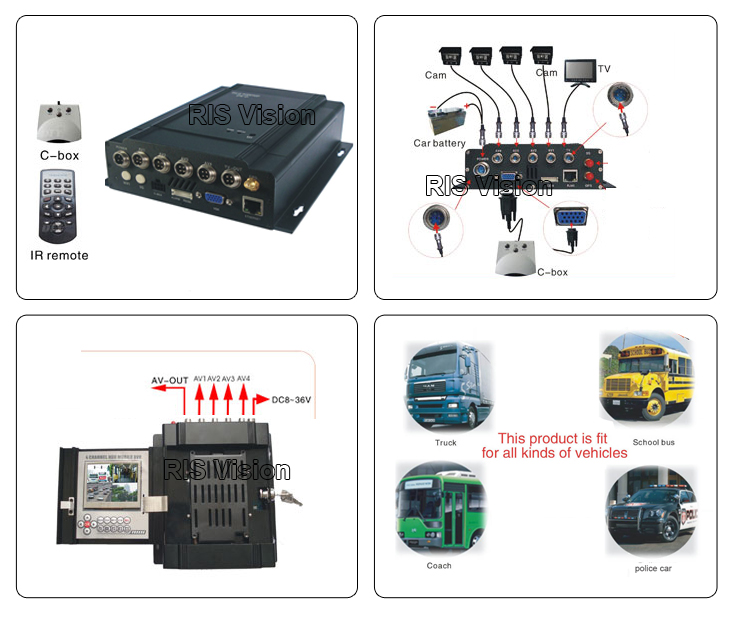

RIS8601-3GW series is a professional, rugged, solid state DVR designed for in-vehicle recording. RIS8601-3GW DVR adopts H.264 compression format, records up to 4 channels video and audio at the same time, supports hard disk up to 2TB as well as SD Card up to 32GB for saving video clips. The video resolution is up to D1 each channel, and the frame rate is up to 30fps (PAL). RIS8601-3GW works with all CCD/CMOS cameras; it is a new in-vehicle recording system that you can rely on.

RIS8601-3GW Series including all the following model



1. Unique design with safe lock and 3.5" TFT display built inside the housing;
2. H.264 main profile Video compression format;
3. Can work with power supply ranging from DC8V to DC36V;
4. Supports Manual Record, Motion Detect and scheduled Record;
5. Video resolution: D1/HD1/CIF/QCIF selectable for each channel;
   frame rate: 1-25fps (PAL) or 1-30fps (NTSC) for each channel;
6. Supports 4 channels "Video & Audio" recording and playback simultaneously;
7. Supports 4 "alarm input" and 1 "alarm output";
8. Video clips can be saved onto SD card or HDD;
   Supports SD card up to 32GB and hard disk up to 2TB;
9. Video file can be backed up in format H.264 or AVI;
10. Supports VGA high definition video/audio output;
11. Supports Mouse & IR remote control for easy operation;
12. Can work with 4 cameras simultaneously, and power all 4 cameras directly;
13. Multiple language options, covers almost all main languages all over the world
14 Compatible CCD or CMOS camera
15. Dimension:180mm (L) x 50mm (W) x 194mm (H)
16.2.0Kg/pcs for single DVR weight

Package Details:
RIS8601 DVR: 1pc ;Extension IR Receiver: 1pc; IR Remote: 1pc; Power Cable   1pc; AV input Cable (for cam): 4pcs;AV Cable (for TV): 1pc; User Manual: 1pc; Video Player Disc: 1pc;
