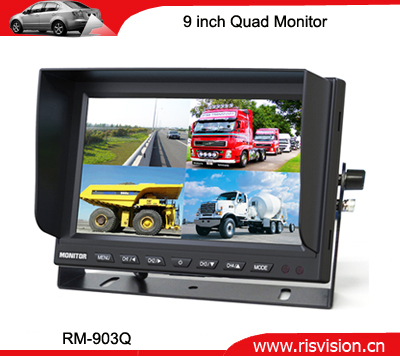

◆ 9 inch Super large quad monitor

◆  Built-in Quad Control Box function

◆  Support four cameras at the same time

◆  Single view / double view / quad view selectable

◆  16:9 wide screeen display

◆  PAL / NTSC auto switching

◆   Built in speaker

◆  Suit for 4 PIN DIN or RCA camera (Optional)

◆  Automatic switching with trigger

◆  Suitable for back view / side view cameras

◆  Resolution : 680 * ( RGB ) * 234

◆  Power Supply : DC 12~24V
       ◆  Size : 233mm (L) * 160mm (W) * 27mm (H)

 Connecting :



 Dimension:
