Item

Specification

Screen Size

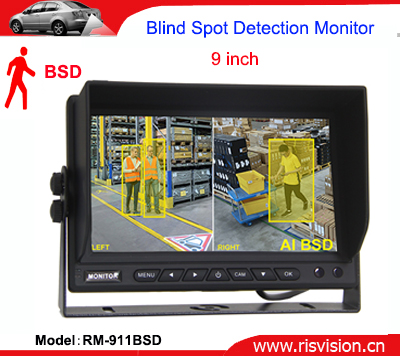

7/9/10.1 Inch AHD Quad Monitor (BSD)

Backlight Brightness

LED, brightness 500cd/m2  500: 1

Screen Resolution

1024*R.G.B*600

Language

English/Chinese/Japanese/Russian

System

PAL/NTSC (auto)

Power Supply

DC12V-36V (working voltage above 13V with camera)

Output: 11.5 V/3A

Operating Temperature

-20℃ ~ 70℃

Storage Temperature

-30℃ ~ 80℃

SD Card Slot

SD high-speed card for video storage, minimum 16GB, maximum 128GB, card speed not less than 10M/S

Camera Resolution

1280x 720

Video Resolution

720P (HD 1280x720)

Photographic Resolution

1280x720

Storage Compression

H.264

Video Format

.ts

Picture Format

jpg

Connector

4-Pin Aviation Plug

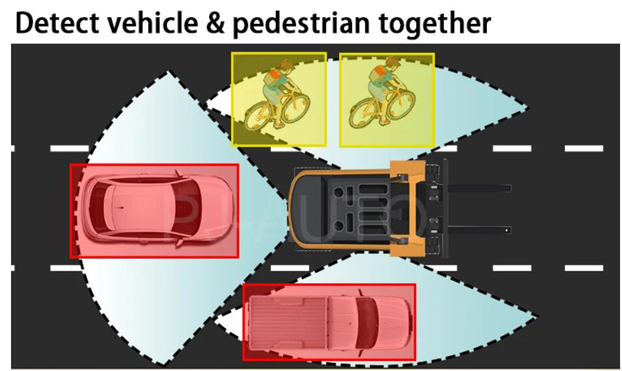

Detected Channels

3(rear,left,right)

Warning Distance

Up to 12-meter

AI Computing Power

0.5T

Accessories

Power Cable, Remote Control, Bracket, User Manual
