 Feature:

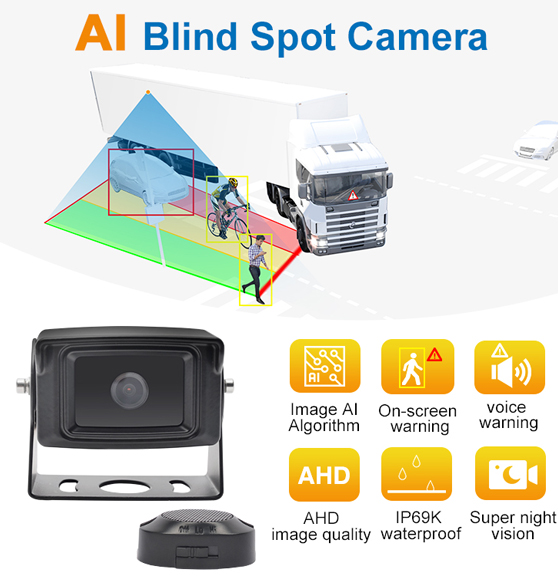

When reversing, the camera actively detects obstacles behind, and outlines vehicle, pedestrians or cyclists in different colors according to the distance, green for safety zone, yellow for warning zone.Once a pedestrian, cyclist or vehicle is detected in the danger zone, the grid line area turns from blue to red, along with beeping alarm for warning.
 Product function:
1. Screen warning: When reversing, the human body and the vehicle can be dynamically identified in the output video screen. When the human body or vehicle enters the scale of the screen, the scale of the screen changes from blue to red to provide a warning.
2. Sound warning: When reversing, when a human body or a vehicle enters the scale range of the screen, the scale range of the screen changes from blue to red, and the buzzer emits a warning sound (the buzzer has three gears: high volume, low volume, and volume off ).
 Specification:
AI Pedestrian Detection Backup Camera
|
Model
|
RC-501AI
|
|
SENSOR
|
1/2.8 CMOS camera
|
|
system
|
NTSC/PAL
|
|
Frame rate
|
30/25
|
|
pixel size
|
2.8 μm x 2.8 μm
|
|
Effective Pixels
|
1920 (H) x 1080 (V)
|
|
definition
|
720P （1080P Optional）
|
|
minimum illumination
|
0.1 Lux (day), 0 Lux (with IR)
|
|
scanning system
|
Interlaced scanning
|
|
Interlaced scanning
|
automatic
|
|
Signal to Noise Ratio
|
Better than 48dB
|
|
Alarm Type
|
Bibi Sound
|
|
Electronic shutter
|
AUTO
|
|
Backlight Compensation
|
AUTO
|
|
focal length
|
2.8mm
|
|
camera angle
|
D:135° H:105° V:55°
|
|
supply voltage
|
DC12V
|
|
Ambient Temperature
|
-20 ℃~70 ℃, maximum humidity of 95%
|
|
Storage temperature
|
-30 ℃~80 ℃, maximum humidity of 95%
|
|
Application
|
Pedestrian & Vehicle & Obstacles Detection
|
 Cable Connecting :
|
