Specifications

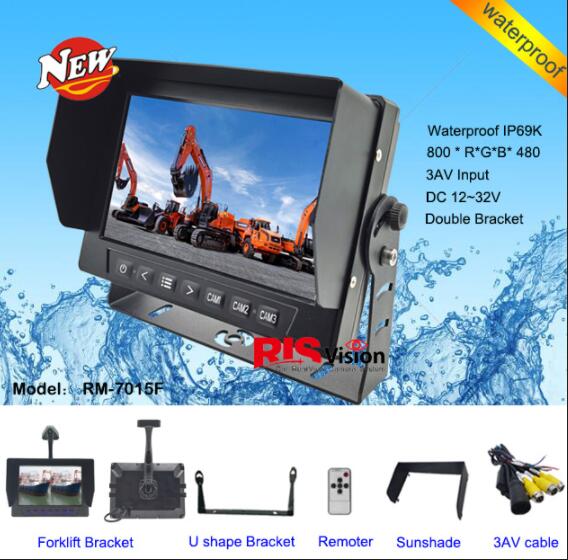

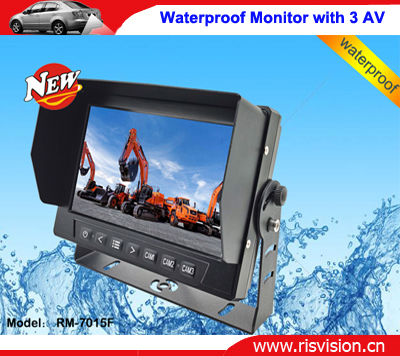

Model number: RM-7015F

Screen Ratio

7”high digital new panel/16:9image

Back Light Luminance

LED 350-400cd/㎡

Resolution

800*R.G.B*480

View angle

View angle:L/R 70°,UP:50°,down: 70° degree

AV Inputs

3 way video input

Trigger

V2>V1>V3(Reference point and time control for reverse gear setting )

Backlight brightness

with light sensor receiver,can adjust screen brightness automatically day & night

Compatible system

NTSC & PAL (automatically)

OSD control

OSD menu, Remoter control (English, Simplify Chinese)

Image reversion

UP/Down and Left/Right

Power requirement

Input，12V-36DC/output，12V

Power consumption

5W

Storage temperature

-30〜80℃

Working temperature

-20℃ to 70℃

Waterproof grade

IP69K

Key color

Ferrous metal  ,Detachable sunshade&MetalU type bracket

Optional functions

4 PIN connector or RCA connector

Size

188*127.2*34(79)mm

Accessories

Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench
