Model No.:
9 Inch AHD Quad Monitor |
|
| Detailed Product Description: |
 Specification ：

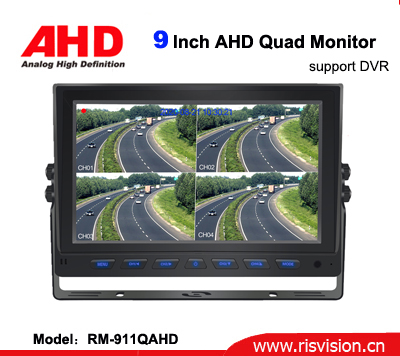

9 INCH AHD QUAD MONITOR
|
SPECS
|
Model No.:RM-911QAHD
|
|
Screen
|
9″digital high definition panel
|
|
Aspect Ratio
|
16:9
|
|
Resolution
|
1024*R.G.B*600
|
|
Back light
|
LED, Luminance: 400 cd/m2
|
|
Contrast
|
1000:1
|
|
Viewing angle
|
UP—50°,DOWN—70°,LEFT—70°,RIGHT—70°
|
|
OSD CONTROL
|
Brightness, language (English, simplified Chinese)
|
|
System
|
PAL /NTSC system
|
|
AV input
|
4 channel AHD video input, 1/2/3/4 image display adjustable, 1 channel audio input, Support 720P / 960P/1080P
|
|
Panel control
|
Support
|
|
Remote control
|
Support
|
|
Trigger control
|
4 channel trigger control
|
|
Shockproof level
|
4G
|
|
Connector
|
4PIN or RCA optional
|
|
Power supply
|
DC 9V-36V wide voltage power supply, support ACC ignition
|
|
Power consumption
|
<8W
|
|
Working temperature
|
-10℃ to 70℃
|
|
Storage temperature
|
-20℃ to 80℃
|
|
Packing list
|
Power cable, remote control, bracket, hexagon wrench, user manual
|
|
|
 |
|
|
