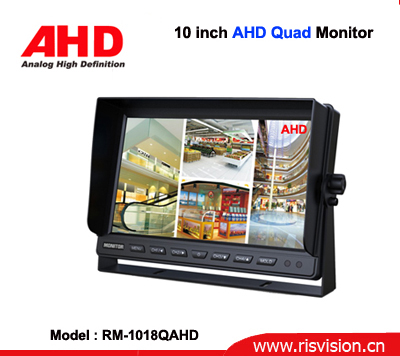

10.1 Inch AHD 720P/960P Quad Screen Monitor

SPECS

Model No.:RM-1018QAHD

Aspect Ratio

16：9

Resolution

1024*R.G.B.*600

Backlight

LED, Luminance: 300cd/m²

Contrast

500：1

Recording Speed

720P: 25f/s/D1:25f/s

Viewing Angle

UP-60°，DOWN-70°, LEFT-60°, RIGHT-70°

Working Temperature

 -20~+60 ºC

Working Humidity

85%RH

Storage Temperature

-30~+85 ºC

Power Supply

DC 9-30V

Boot Time

20S

 Current

 750mA

OSD Control

Image Setting, Mirror Setting, System Setting

Power Consumption

<9W

Signal input

4 channel 720P/CVBS video input

Image Display

Multiple image display switchable

Trigger Control

4 channel reversing trigger control, with parking guide line function

System

PAL/NTSC

Shockproof  Level

4G

Audio

1 channel audio input (CH1 playback with audio)

Speaker Output Consumption

32Ω2W
