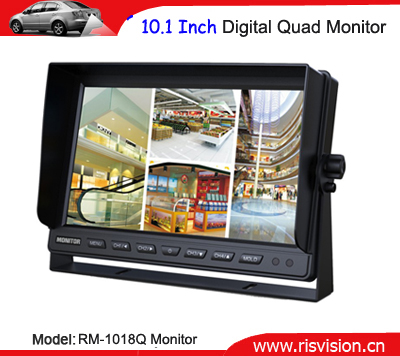

Model number: RM-1018Q

◆ Screen Ratio：16:9

◆ Back Light：300cd/m2

◆ Resolution：1024xRGBx600

◆ Compatible system   ：NTSC & PAL (Optional)

◆ OSD control ：Color, Brightness, Contrast, Volume, Language

(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)

◆ View angle ：up—15°，down—35°，left—45°，right—45°

◆ Image reversion ：UP/Down and Left/Right

◆ Power requirement：12-24V DC

◆ Power consumption：5W

◆ Storage temperature：      -30～80℃

◆ Working temperature：     -20℃ to 70℃

◆ Size：285mm*184mm*34mm mm

◆ Weight： 900g

◆ Video：4 way video input, 1 way audio input

◆ Number of Trigger and display 1 triggers

Optional functions ：Built-in speaker, 4 PIN connector suitable

Accessories：   Remote controller, Power supply cable , User manual, Bracket

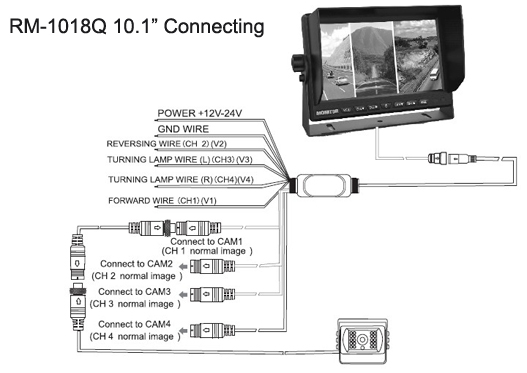

 Quad Monitor Cable Connecting :
