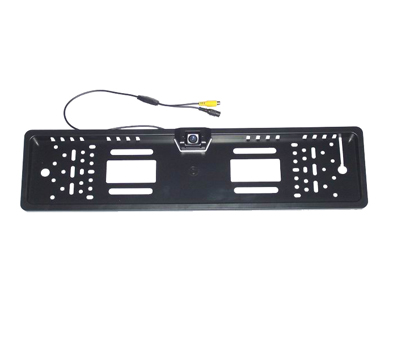

Material Object :




                                        Guilde Line




◆ Chipset: Colour CMOS  PC1030
              ◆ Super wide angle : 170 ~180 degree
              ◆ After installing, you can adjust the angle.
              ◆ Number of Pixels : NTSC : 510(H)x492(V); PAL : 500(H)x582(V)

◆ Horizontal Resolution: 420 TV Lines

◆ TV system:  NTSC /PAL

◆ Usable Illumination : 1 Lux(F:1.2), 0 Lux with IR LED

◆ Waterproof Resistance : IP 68

◆ Scanning System : NTSC : 525 Lines, 60 Field/sec; PAL: 625 Lines,50 Field/sec

◆ Sync System: Internal Synchronization

◆ Lens :2.1mm
              ◆ Video Output :1.0 Vp-p 75 ohm

◆ Gain Control (AGC): Auto

◆ Operation Temperature : -10℃～+50℃ RH95% Max

◆ Storage Temperature: -20℃～ +60℃ RH95% Max

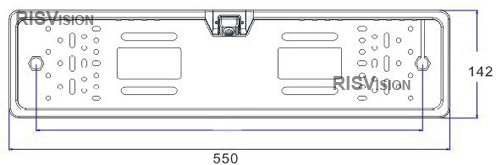

              ◆ Dimension : 550 *142 mm

 Size:
