RW-7013W Digital Wireless System
Model No.:
※Built-in quad function&; ※Support four camera inputs Single View/Split view/Quad view selectable ※With high-low voltage protection and short circuit protection ※7 inch digital 2.4G wireless monitor; ※Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing; ※Operates from DC12~36V;

Detailed Product Description:

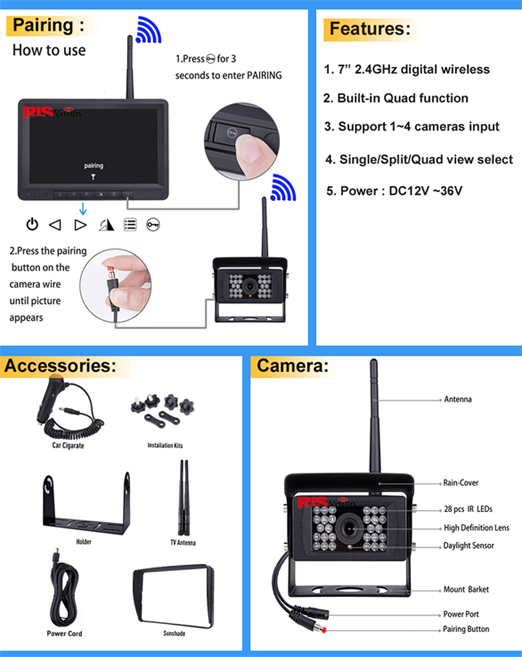

  Features:

※ Built-in quad function
※ Support four camera inputs Single View/Split view/Quad view selectable
※ With high-low voltage protection and short circuit protection

※ 7 inch digital 2.4G wireless monitor
※ Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing
※ Operates from  DC12~36
※ 2.4GHz Digital Wireless Camera
※ Working power supply from 12V to 36

※ Chipset 1/3", high definition CMOS sensor: PC3089


 Product Description



LCD size

   7 "

Resolution

800 x 3 (RGB) x 480

Contrast

500:1:

Brightness

400 cd/m²

Viewing Angle

U: 50 / D: 70, R/L: 70

Aspect Ratio

16:09

Channel

4 channels

Operating Frequency

2400 - 2483.5 MHz

Power Consumption

Max. 5W

Operating Temperature

-20~+70ºC, RH 90%

Storage Temperature

-30~+80℃, RH 90%



Specification of 2.4G wireless camera



TV System:

PAL / NTSC

Resolution:

PC3089

Operating frequency:

2400 - 2483.5 MHz

Waterproof protection level

IP68

Current Consumption:

max: 300mA

Power Supply:

DC 12 V--36V

Operating Temperature:

-20°C~70°C, RH 95% MAX.

Lens:

f = 2.8mm

Lens Angle:

120°
