RW-710WDVR(4) Digital Wireless Quad DVR System
Model No.:
※.4CH;digital wireless camera & DVR system ※.Simple installation- no cables required ※.Total digital wireless, no interference , no privacy leak ※.7"LCD monitor with integrated video recorder※.Support up to 128GB TF card ※.CAM1/CAM2/CAM3/CAM4 display at the same time ※.Weather proof;outdoor cameras with 120m transmission open range ※.Auto pairing : auto pairing happens when camera is activated ※.Support 4 channel composite and single channel recording in AVI signal format ※.Auto switch to the working channel when trigger is activated ※.Suitable for Bus/Truck/Trailer/RV Heavy Duty LONG Vehicles

Detailed Product Description:
 Specification :

Product Features

1.  4CH digital wireless camera & DVR system
2.  Simple installation- no cables required !
3.  Total digital wireless , no interference , no privacy leak
4.  7’ LCD monitor with integrated video recorder
5.  Support up to 128GB TF card

6. CAM1/CAM2/CAM3/CAM4 display at the same time
7Weather proof outdoor cameras with 120m transmission open range
8 2.4G Digital wireless modulation with FHSS technology(frequency hopping).

9.  Normal, Mirror ,Flip and MIR-Flip viewing available

10. Auto pairing : auto pairing happens when camera is activated

11. Auto Scanning

12. Support 4 channel composite and single channel recording in AVI signal format

13. Wide Voltage input: 10 - 32V

14. Auto switch to the working channel when trigger is activated

15. Suitable for Bus/Truck/Trailer/RV Heavy Duty LONG Vehicles







Product  Parameter

Receiver

Monitor

RM-710WDVR   7"  digital TFT



Resolution

800*3(RGB)* 480

TV system

PLA&NTSC

Transmission frequency

2.4GHZDigital RF modulation

Receiving Sensitivity

≤-85dBm

Power Adapter

DC 5V/ 1000mA

transmission distance

without block  30 ~ 120m (360ft)

Modulation

2.4G FSK / GFSK

Operating Frequency

2400 ~ 2483.5MHz

Receiving Sensitivity

-89dBm

Decompression Form

MPEG4

Transmit Output Power

17dBm

Channel

4 channel

Power Consumption

Max.6W

Power Supply

DC 10~32V

Camera

Model / Image Sensor

 RC-502HWB / 1/3" CMOS PC1089

Horizontal Definition

420 TV line

Receive frequency

2.4GHZ Digital RF modulation

Minimum Illumination

0Lux (Infrared LED ON)/ 5LUX(IROFF)

Night-vision distance

10m

Waterproof

IP69K

Power Voltage

DC 12 ~24V

View Angle

120

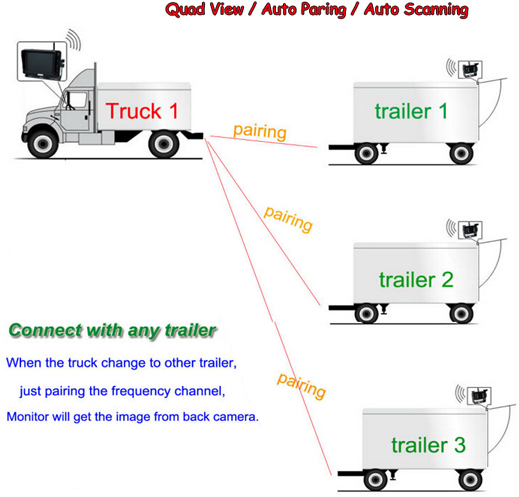

  Wireless system connecting :
