 Speicification :
Product Features:
1. 4CH digital wireless camera & DVR system
2. Simple installation- no cables required !
3. Total digital wireless , no interference , no privacy leak
4. 7’ LCD monitor with integrated video recorder
5. Support up to 128GB TF card
6. CAM1/CAM2/CAM3/CAM4 display at the same time
7. Weather proof outdoor cameras with 120m transmission open range
8. 2.4G Digital wireless modulation with FHSS technology(frequency hopping).
9. Normal, Mirror ,Flip and MIR-Flip viewing available

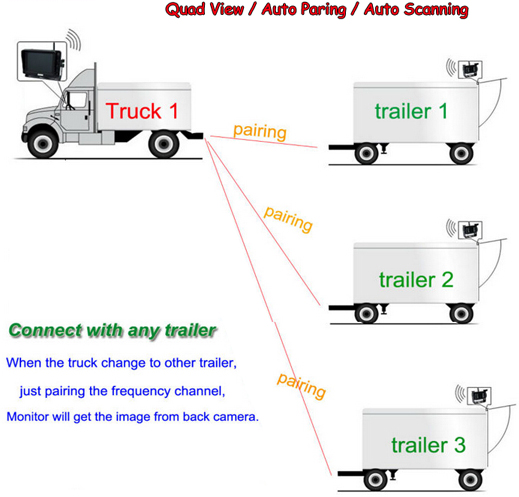

10. Auto pairing : auto pairing happens when camera is activated
11. Auto Scanning
12. Support 4 channel composite and single channel recording in AVI signal format
13. Wide Voltage input: 10 - 32V
14. Auto switch to the working channel when trigger is activated
15. Suitable for Bus/Truck/Trailer/RV Heavy Duty LONG Vehicles
|
Product Parameter
|
|
Receiver
|
Model / LCD Screen Size
|
RM-710WDVR / 7" digital TFT
|
|
Resolution
|
800*3(RGB)* 480
|
|
TV system
|
PLA&NTSC
|
|
Transmission frequency
|
2.4GHZDigital RF modulation
|
|
Receiving Sensitivity
|
≤-85dBm
|
|
Power Adapter
|
DC 5V/ 1000mA
|
|
transmission distance
|
without block 30 ~ 120m (360ft)
|
|
Modulation
|
2.4G FSK / GFSK
|
|
Operating Frequency
|
2400 ~ 2483.5MHz
|
|
Receiving Sensitivity
|
-89dBm
|
|
Decompression Form
|
MPEG4
|
|
Transmit Output Power
|
17dBm
|
|
Channel
|
4 channel
|
|
Power Consumption
|
Max.6W
|
|
Power Supply
|
DC 10~32V
|
|
Camera
|
Model / Image Sensor
|
RC-502HWB /1/3" CMOS PC1089
|
|
Horizontal Definition
|
420 TV line
|
|
Receive frequency
|
2.4GHZ Digital RF modulation
|
|
Minimum Illumination
|
0Lux (Infrared LED ON)/ 5LUX(IROFF)
|
|
Night-vision distance
|
10m
|
|
Waterproof
|
IP69K
|
|
Power Voltage
|
DC 12 ~24V
|
|
View Angle
|
120
|
